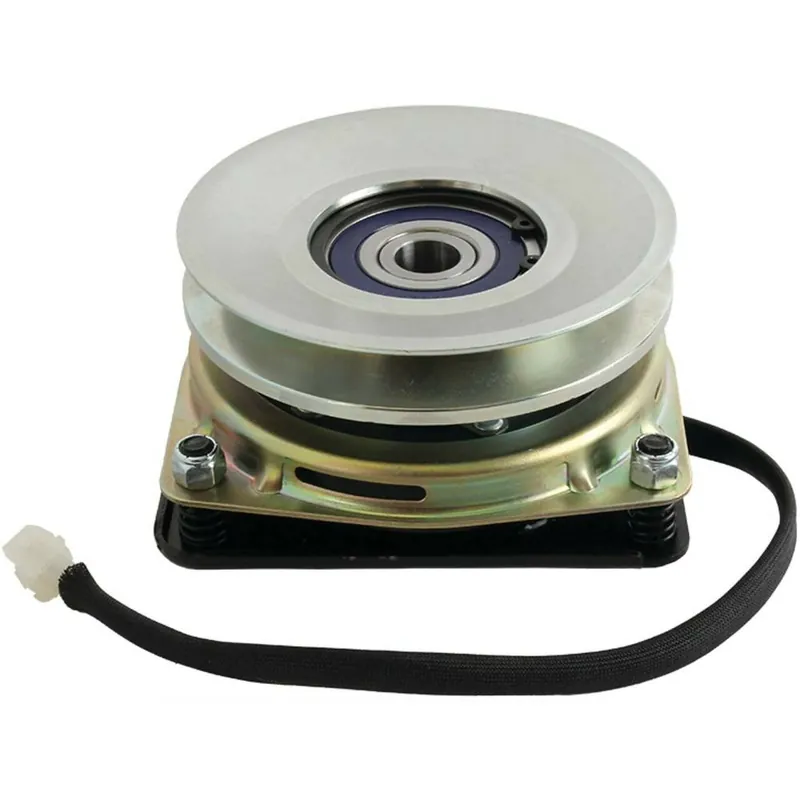

Xtreme – X0588 – PTO Clutch for Ariens, Gravely 04387900, 4387900

Xtreme PTO Clutch – X0588

Specifications:

Crankshaft : 1.000

Pulley: 6.000″

Rotation : Counter Clockwise

Belt : A/B Belt

Xtreme Torque : 110 ft. lbs.

Fits the Following Models:

Ariens – 915131, 915151 (010000 & Up) Briggs & Stratton 34″ Mower, 915141, 915155 (000101 & UP) Briggs & Stratton 42″ Mower, 915143 (000101 & UP) Kawasaki 50″ Mower, 915157, 915169, 915157, 915322 (000101 – 009999) Zoom 34, 915159, 915171, 915159, 915323 (000101 – 009999) Zoom 42, 915161, 915161 (000101 – 009999) Kohler, Zoom 50, 915161, 915161 (000101 – 009999) Kohler, Zoom 50, 915161, 915161 (000101 – 009999) Kohler, Zoom 50, 915161, 915161 (000101 – 009999) Kohler, Zoom 50

Gravely – 915140, 915146, 915168, 915180, 915194, 915210 34″ ZT (000101 & UP), 915142, 915148, 915170, 915178, 915196, 915212 42″ ZT (000101 & UP), 915144, 915150, 915192, 915214 50″ ZT (000101 & UP), 915180 50″ ZT (035000 & UP), 915327, 915328 34″ & 42″ Zoom (020000 & UP), 991082 – ZT 48HD (010000 – 019999), (030000 & Above), 991083 – ZT 52HD (010000 – 019999), (030000 & Above), 991084 – ZT 52HD (010000 – 019999), (030000 & Above), 991090 – ZT 44HD (010000 – 019999), (030000 & Above), 991091 – ZT 60HD (000101 – 019999), 991098 – ZT 44HD (030000 & Above), 991099 – ZT 48HD (030000 & Above), 991100 – ZT 52HD (030000 & Above), 991101 – ZT 60HD (030000 & Above), 991107 – ZT 44HD (035000 & Above), 991108 – ZT 44HD (035000 & Above), 991109 – ZT 44HD (035000 & Above), 991110 – ZT 44HD (035000 & Above), 991111 – ZT 44HD (045000 & Above)

Replaces the Following OEM Part Numbers:

Ariens – 04387900

Gravely – 4387900, 04387900
