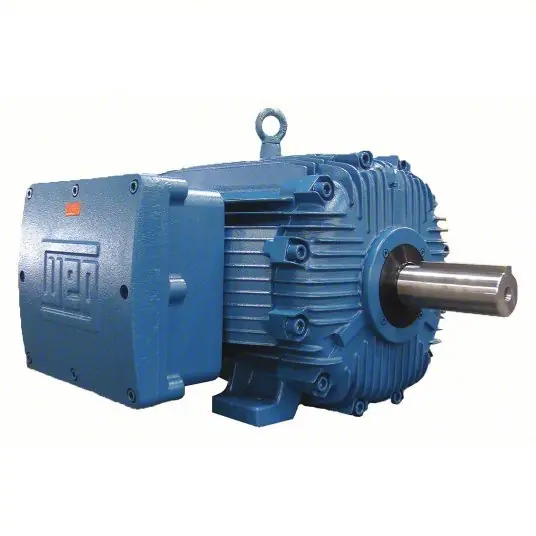

WEG 01518XT3E254T Hazardous Location Motor 1 C,D / 2 F,G, 15 HP, 1,770 Nameplate RPM, 208-230/460V AC, 254T Frame
Original price was: $3,958.99.$298.98Current price is: $298.98.
Hazardous Location Motor, Three Phase, Motor Design 3-Phase, 15 HP, Nameplate RPM 1,770, No. of Speeds 1, Voltage 208-230/460V AC, Full Load Amps 36.8/18.4 A, 254T Frame, Usable @ 208V Yes, Usable @ 200V No, Hz 60 Hz, Max. Ambient Temp. 104 Degrees F, Motor Service Factor 1.15, Motor Thermal Protection T-Stat, Ins. Class F, Hazardous Location Class 1 C,D / 2 F,G, Temp. Code T4, Motor Enclosure Design Totally Enclosed Fan-Cooled, Duty Cycle Continuous, Motor Mounting Type Rigid Base
| Motor Design | 3-Phase |
| Phase | Three |
| HP | 15 |
| RPM Range | 1,701-1,800 |
| Voltage | 208-230/460V AC |
| Frame | 254T |
| Hazardous Location Class | 1 C,D / 2 F,G |
| Motor Thermal Protection | T-Stat |
| Motor Enclosure Design | Totally Enclosed Fan-Cooled |
| Motor Mounting Type | Rigid Base |
| CC Number | CC029A |
| Motor Bearings | Ball |
| Ins. Class | F |
| Voltage Compatibility | 208-220/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC, 208V AC, 220-230/460V AC, 220/460V AC, 230/460V AC, 230V AC, 240V AC, 460V AC |
| Motor Application | Hazardous Location |
| Duty | Continuous |
| Nameplate RPM | 1,770 |
| Motor Shaft Design | Keyed |
| Green Environmental Attribute | Product Contributes To Reducing Energy Consumption |
| Frame Material | Cast Iron |
| UPC | 7894171898749 |
| Motor Frame Material | Cast Iron |
| Green Certification or Other Recognition | NEMA Premium Rated |
| Nominal Efficiency | 92.4 % |
| Motor Shaft Rotation | CW/CCW |
| Motor Service Factor | 1.15 |
| NEMA Design | B |
| Hz | 60 Hz |
| Standards | CSA Certified (LR50962), UL Listed (E87848) |
| Motor Efficiency Group | NEMA Premium Efficient |
| Full Load Amps | 36.8/18.4 A |
| Temp. Code | T4 |
| Max. Ambient Temp. | 104 Degrees F |
| No. of Speeds | 1 |
| Weight | 144 lb |
| Conduit Box Location | Exterior |
| Duty Cycle | Continuous |
| Usable @ 200V | No |
| Hazardous Location Division | Division 1 |
| Usable @ 208V | Yes |
| Motor Mounting Position | Horizontal |
