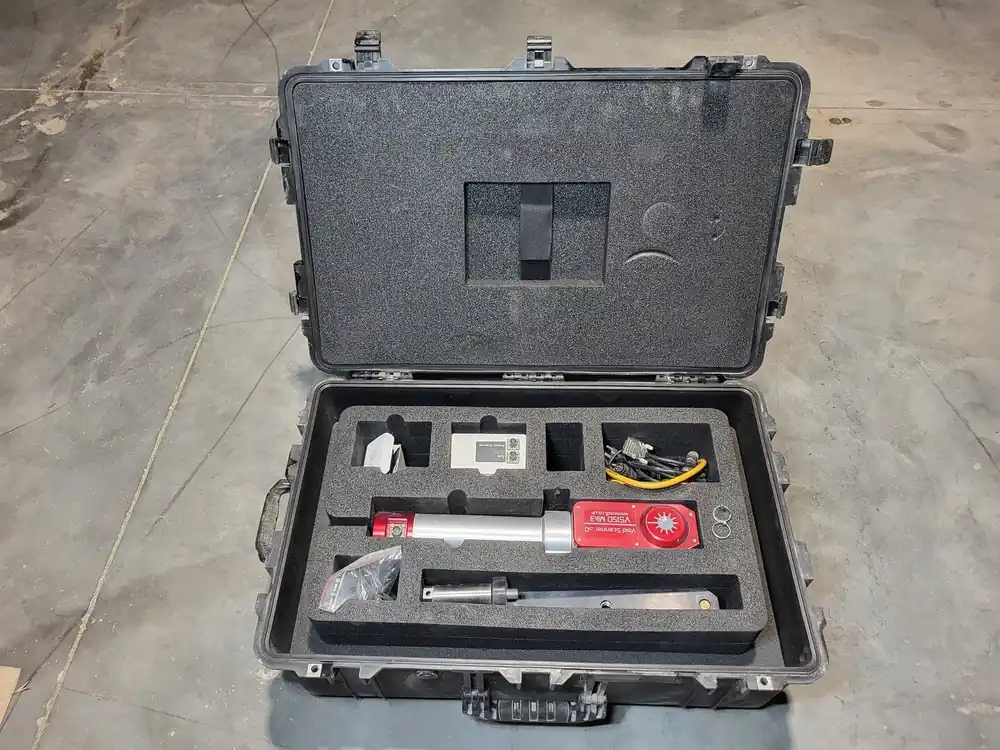

The Void Scanner VS150 Mk3 is a specialized 3D laser scanner designed for mapping inaccessible underground voids, stopes, tunnels, and cavities – areas too dangerous or impractical for personnel to enter. It is mainly used in underground mining, geotechnical engineering, and tunnel inspection to measure void geometry, calculate volumes, and ensure ground stability and excavation safety. The Mk3 is the upgraded version of the original VS150, offering improved ruggedness, measurement precision, and faster data acquisition.
Specifications
Model
VS150
Year:
2012
S/N:
11713010
Made In
GREAT BRITAIN
Condition
Used – Like New
Other Specifications
Overview:
Laser Type: Infrared InGaAs diode
Wavelength 905 nm
Beam Divergence 2.76 x 0.18 mrad
Range Resolution 1 cm
Maximum Range (white target) Up to 150 m
Minimum Range 0.5 m
Vertical Scan Range +135° to -135°
Horizontal Scan Range 0°-360°
Angular Accuracy +/- 0.2°
Angular Resolution 0.1°
Tilt Sensors (Pitch/Roll ) +/- 0.2° accuracy using accelerometers
Environmental Protection IP65 (dust and water resistant)
Operating Temperature -10 °C to +45 °C
Head Weight 5 kg
System Weight (with case) 23 kg
Power Supply 10-15 V DC or 110-240 V AC (via adapter)
