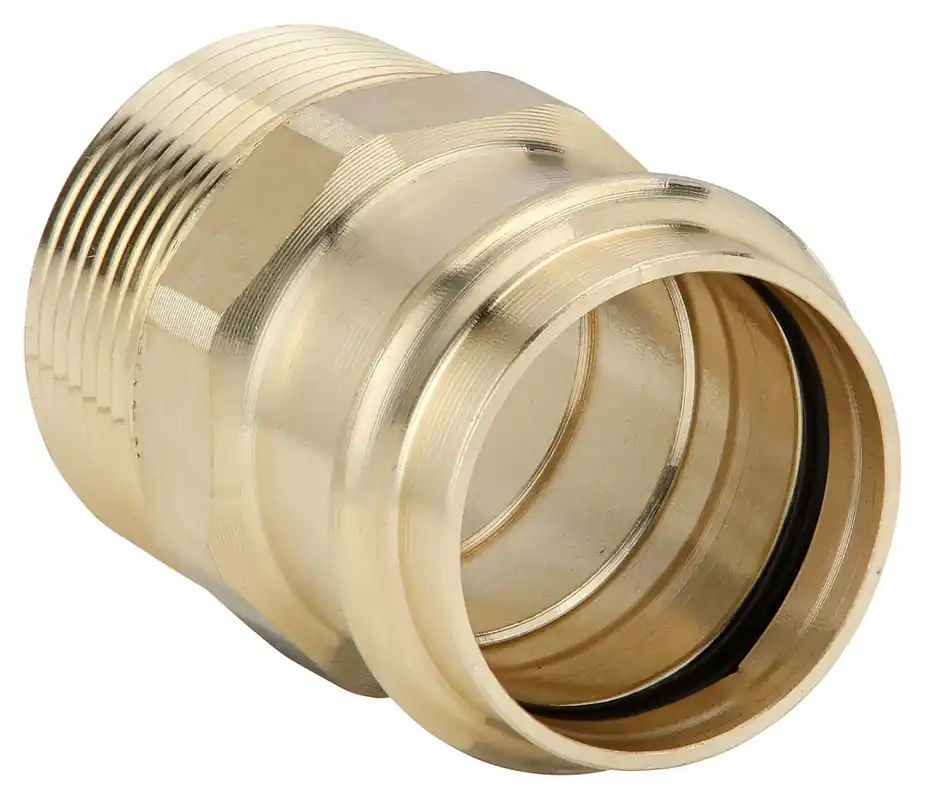

Crimp Adapter Fitting, Application Potable Water, Fitting Side A Connection Type Press-Fit, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 1 1/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 1 1/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 3/8 in, Number of Bolt Holes Not Applicable, Flange Thickness Not Applicable, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F, Standards ASTM B75, ASTM B88
Tube Size
1-1/4 in x 1-1/4 in
Pipe Size – Pipe Fitting
1-1/4 in x 1-1/4 in
Pipe Size (Fittings)
1-1/4″ x 1-1/4″
Fitting Side B Pipe Size
1 1/4 in
Overall Length
2 3/8 in
Fitting Side A Copper Tube Size
1 1/4 in
Fitting Side 1 Copper Tube Size
1 1/4 in
Fitting Side 2 Pipe Size
1 1/4 in
Tube Fitting Material
Bronze
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Press x Male Pipe Thread
Temp. Range
0 Degrees to 250 Degrees F
Standards
ASTM B75, ASTM B88
Compliance
ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Basic Pipe Fitting Shape
Adapter
Max. Pressure
200 psi
Pipe Fitting Connection Type
Press x Male Pipe Thread
Basic Pipe Fitting Material
Metal
Specific Pipe Fitting Shape
Adapter
Maximum Operating Pressure
200 psi
O-Ring Material
EPDM
Fitting Material
Bronze
Fitting Side B Connection Type
MNPT
Minimum Operating Temperature
0 Degrees F
Maximum Operating Temperature
250 Degrees F
Fitting Side A Connection Type
Press-Fit
Fitting Shape
Straight
Application
Potable Water
Operating Temperature – Minimum
0 Degrees F
For Media Type
Potable Water
Operating Pressure – Maximum
200 psi
Connector Type
Adapter
Fitting Side 1 Connection Type
Press-fit
Fitting Side 2 Connection Type
MNPT
Operating Temperature – Maximum
250 Degrees F
Center Stop Type
Dimple Center Stop
Country of Origin
Germany
