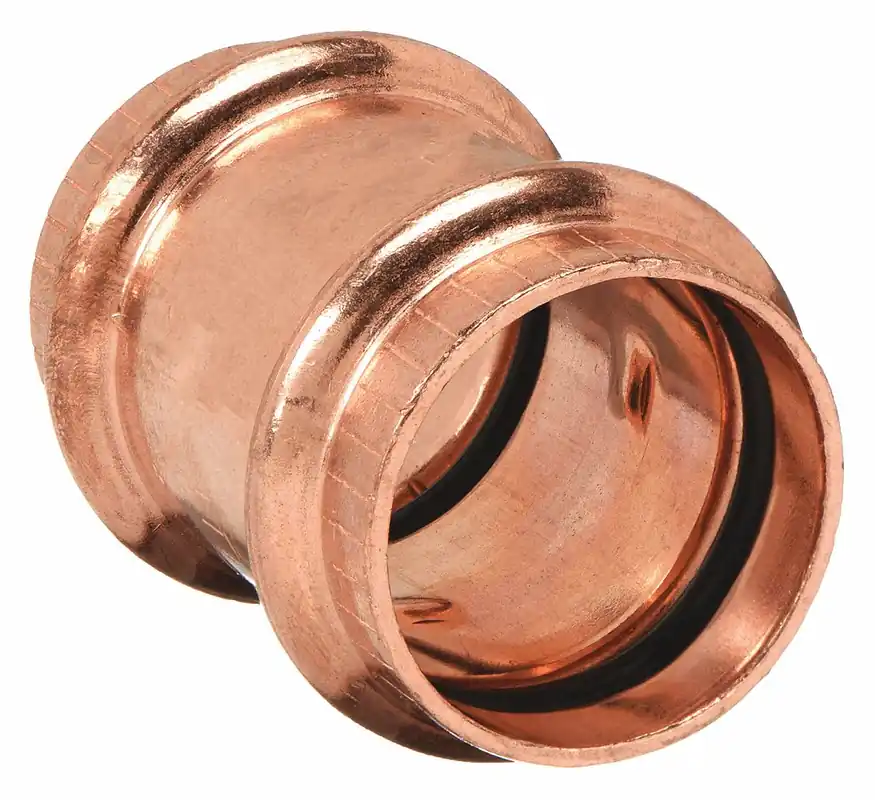

These press tube fittings are suitable for plumbing applications with potable water. They crimp onto tubing and have a sealing O-ring to ensure a secure, leaktight connection.
Country of Origin
United States
Tube Size
3/4 in x 3/4 in
Pipe Size – Pipe Fitting
3/4 in x 3/4 in
Pipe Size (Fittings)
3/4″ x 3/4″
Fitting Side A Copper Tube Size
3/4 in
Fitting Side B Copper Tube Size
3/4 in
Overall Length
2 in
Fitting Side 2 Copper Tube Size
3/4 in
Fitting Side 1 Copper Tube Size
3/4 in
Tube Fitting Material
Copper
Specific Fitting Shape
Straight Coupling
Fitting Connection Type
Press x Press
Standards
ASTM B75, ASTM B88
Temp. Range
0 Degrees to 250 Degrees F
Pipe Fitting Connection Type
Press x Press
Specific Pipe Fitting Shape
Coupling
Basic Pipe Fitting Shape
Coupling
Basic Pipe Fitting Material
Metal
Compliance
ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213
Max. Pressure
200 psi
Fitting Side B Connection Type
Press-Fit
Application
Potable Water
Includes Center Stop
Dimple Center Stop
Maximum Operating Temperature
250 Degrees F
O-Ring Material
EPDM
Fitting Side A Connection Type
Press-Fit
Fitting Material
Copper
Minimum Operating Temperature
0 Degrees F
Maximum Operating Pressure
200 psi
Fitting Shape
Straight
Fitting Side 1 Connection Type
Press-fit
For Media Type
Potable Water
Operating Temperature – Maximum
250 Degrees F
Operating Temperature – Minimum
0 Degrees F
Center Stop Type
Dimple Center Stop
Connector Type
Coupling
Fitting Side 2 Connection Type
Press-fit
Operating Pressure – Maximum
200 psi
Restrictions
This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption – drinking and cooking) and non-potable water applications (non-human consumption).
