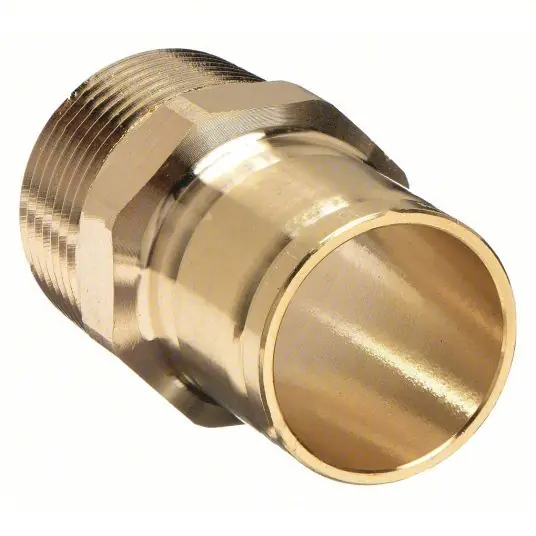

Viega 79395 Adapter Bronze, FTG x MNPT, 3/4 in Copper Tube Size, 3/4 in Pipe Size
Original price was: $26.25.$7.87Current price is: $7.87.
Adapter, Application Potable Water, Fitting Side A Connection Type FTG, Fitting Side B Connection Type MNPT, Fitting Side A Copper Tube Size 3/4 in, Fitting Material Bronze, Fitting Side B Pipe Size 3/4 in, O-Ring Material EPDM, Specific Fitting Shape Straight Adapter, Overall Length 2 1/16 in, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 250 Degrees F
| Item | Adapter |
| Tube Fitting Material | Bronze |
| Specific Fitting Shape | Straight Adapter |
| Fitting Connection Type | Street x Male Pipe Thread |
| Max. Pressure | 200 psi |
| Temp. Range | 0 Degrees to 250 Degrees F |
| Basic Pipe Fitting Shape | Adapter |
| Standards | ABS Type Approval, CRN, CRN 0A14541.5 A/B/C, CSA, CSA MSE-13, FM Class 1920, IAPMO, IAPMO PS 117, ICC, ICC-ES PMG-1037, NFPA 13, NFPA 13D, NFPA 13R, NSF/ANSI 372, NSF/ANSI 61, PHCC, UL, ULC/ORD 213 |
| Specific Pipe Fitting Shape | Adapter |
| Compliance | ABS: America Bureau of Shipping, CRN 0A14541.5 A/B/C, CSA MSE-13, FM Class 1920, IAPMO PS117, ICC-ES PMG-1037, NSF 372, NSF 61, ULC/ORD 213 |
| Pipe Fitting Connection Type | Street x Male Pipe Thread |
| Basic Pipe Fitting Material | Metal |
| Fitting Material | Bronze |
| Maximum Operating Temperature | 250 Degrees F |
| Stop and Shape | Straight Adapter |
| End Connection Type | Fitting, Threaded |
| Fitting Shape | Adapter |
| Maximum Operating Pressure | 200 psi |
| Minimum Operating Temperature | 0 Degrees F |
| Fitting Side A Connection Type | FTG |
| Application | Potable Water |
| Connection Type | FTG x MNPT |
| O-Ring Material | EPDM |
| Fitting Side B Connection Type | MNPT |
