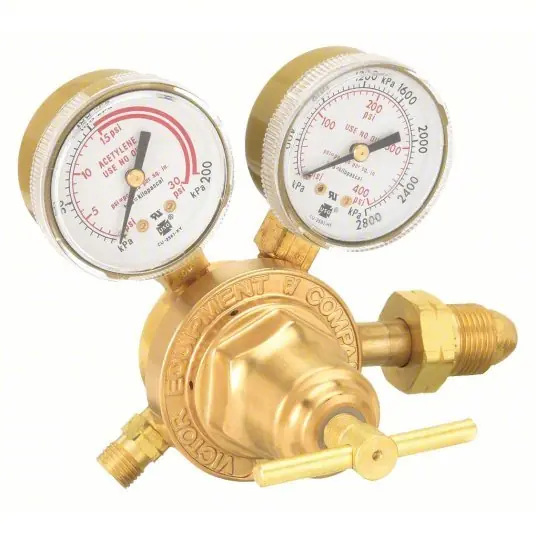

Victor 0781-0087 Gas Regulator Single Stage, CGA 510 Inlet, 9/16″-18 M LH Outlet, 15 psig, Neoprene Diaphragm

Gas Regulator, Maximum Gauge Outlet Pressure 3,000 psig, Number of Stages Single Stage, Control Type T-Handle, Inlet Connection Type NGO, Inlet Connection Gender Female, Inlet Connection Size 0.825 In.-14, Outlet Pressure (Maximum) 15 psig, Outlet Connection Gender Male, Outlet Connection Size 9/16 In.-18, Outlet Connection Type UNF, Body Material Brass, Diaphragm Material Neoprene, CGA Number CGA 510, Application General Purpose, Body Diameter 2.5 in, Duty Rating Medium/Standard Duty

Stages	Single Stage
Regulator Application	General Purpose
Standards	ETL Listed, UL252
Supply Pressure Gauge	3,000 psi
Regulator Supply Type	Cylinder
Application	General Purpose
Diaphragm Material	Neoprene
Delivery	900 scfh
Item	Gas Regulator
Regulator Capacity	Medium Duty
Body Material	Brass
Gauges Delivery Pressure	30 psi
Delivery Pressure Range	2 to 15 psi
Duty Rating	Medium/Standard Duty
Features	Tried and True Brass Design Delivers Excellent Gas Control Characteristics That Meets the Demands of Precise Cutting, Welding and Heating Applications
Type	Single Stage, Medium Duty
CGA Number	CGA 510
Flow Coefficient	0.109
Outlet Connection Type	UNF
Inlet Connection Type	NGO
Inlet Thread Direction	Left Hand
Maximum Gauge Outlet Pressure	3,000 psig
Inlet Pressure (Maximum)	3,000 psig
Inlet Connection Gender	Female
Outlet Pressure (Maximum)	15 psig
Regulator Series	SR 250
Outlet Connection Gender	Male
Control Type	T-Handle
Number of Stages	Single Stage
Outlet Pressure (Minimum)	2 psig
Compatible Gas Type	Propane
