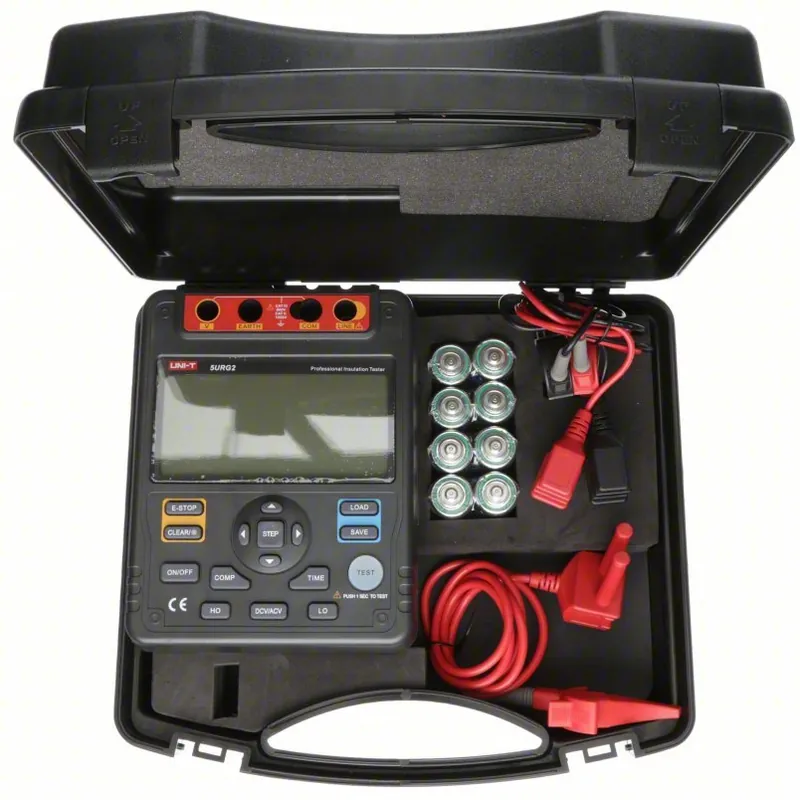

UNI-T KV5URG2 Megohmmeter 0.1 megaohm to 10 gigohm, CAT II 1000V/CAT III 600V, Digital, LCD

UNI-T KV5URG2 Megohmmeter 0.1 megaohm to 10 gigohm, CAT II 1000V/CAT III 600V, Digital, LCD

Original price was: $152.93.Current price is: $38.23.

SKU: SK0019793-US20260630-101428 Category: Tag:
Megohmmeter, Backlit Digital Display Yes, Bluetooth Compatible No, CAT Safety Rating CAT II 1000V, CAT III 600V, Calibration Certificate None, Capacitance Auto Discharge Yes, Display Type Digital, Dustproof No, Greater Than 30V Warning No, Includes (2) Plugs Test Lead to One Alligator Clip, (8) 1.5V C Batteries, Tool Box, Insulation Limit Alarm No, Maximum Insulation Resistance 10 gigohm, Minimum Insulation Resistance 0.1 megaohm, PI/DAR Testing Yes

Item Megohmmeter
Output Test Voltage 100/250/500/1000V DC
Insulation Resistance Range 0.1 megaohm to 10 gigohm
Accuracy +/-3% + 5 Digits
Resistance Range 0.1 to 999.9 ohm
Display Backlit LCD with Bar Graph
Features Already Calibrated, Dielectric Absorption, Polarization Index, Short Circuit Current Protection, Timer
Power Source Battery, DC Adapter
Includes (2) Plugs Test Lead to One Alligator Clip, (8) 1.5V C Batteries, Tool Box
Data Logging 18 Data Points
Auto Ranging Yes
Auto Power Off Yes
Safety Rating Cat III 600V
Calibration Certificate None
Leakage Current Range Not Applicable
Product Type Tester Only
Communication Protocol Not Applicable
Megohmmeter Features Data Logging
CAT Safety Rating CAT II 1000V, CAT III 600V
Parameters Measured AC Voltage, DC Voltage, Insulation Resistance, Low Resistance
Display Type Digital
Resistance Accuracy 1% +/- 3 digits up to 999.9 ohm, 3% +/- 5 digits 1 kiloohm to 100 megaohm, 5% +/- 5 digits over 100 megaohm
Waterproof No
Minimum AC Current Measured Not Applicable
Capacitance Auto Discharge Yes
Test Voltage 1,000V DC, 100V DC, 250V DC, 500V DC
Digital Memory Capacity 32KB
Dustproof No
Insulation Resistance Resolution 0.1 megaohm to 10 gigaohm
Maximum Ground Resistance Measurement Not Applicable
Includes Batteries Yes
Greater Than 30V Warning No
Maximum Insulation Resistance 10 gigohm
Maximum DC Voltage Measured 1,000 V
Alert Type Light
Minimum DC Voltage Measured 30 V
Includes Software No
Minimum Capacitance Measured Not Applicable
IP Rating Not Applicable
Number of Batteries Required 8
Minimum Operating Temperature 14 Degrees F
Bluetooth Compatible No
Minimum Insulation Resistance 0.1 megaohm
Standards Not Applicable
Live Circuit Voltage Greater Than25V AC
Display Screen Type LCD
Battery Chemistry Carbon Zinc
Maximum Operating Temperature 104 Degrees F
Minimum Ground Resistance Measurement Not Applicable
Test Current Less Than2mA
Number of Records Stored 18
Timed Ramp Voltage Test No
Minimum DC Current Measured Not Applicable
USB Data Download Included No
Input Impedance 10 megaohm
PI/DAR Testing Yes
Pass/Fail Selection Limits Yes
Remote Test Probe Included No
Backlit Digital Display Yes
Testing Functions AC/DC Voltage, Insulation Resistance, Low Resistance
Number of Digits 4
Maximum DC Current Measured Not Applicable
Low Resistance Range 0.1 to 999.9 ohm
Insulation Limit Alarm No
Operating Voltage 12V
Maximum AC Voltage Measured 750 V
Data Logger Yes
Maximum Capacitance Measured Not Applicable
Minimum AC Voltage Measured 30 V
Maximum AC Current Measured Not Applicable
