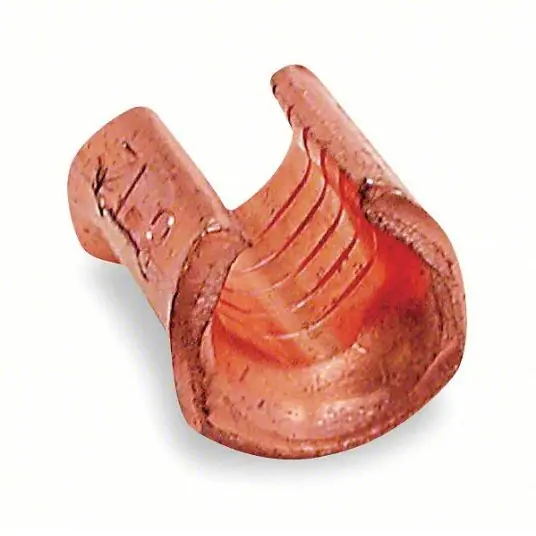

C Tap, Color Code Purple, Die Code 54, For Conductor Material Copper, For Maximum Equal Wire Size 1 AWG (Branch), 2/0 AWG (Main), For Minimum Equal Wire Size 1 AWG (Main), 12 AWG (Branch), For Maximum Tap Wire Size 1 AWG, For Minimum Tap Wire Size 12 AWG, For Maximum Run Wire Size 2/0 AWG, For Minimum Run Wire Size 1 AWG, Material Copper, Maximum Voltage 600 V, Finish Plain, Standards UL E9809, Termination Style Crimp
Material
Copper
Color Code
Purple
Wire Range
Branch 1 to 12 AWG, Main 2/0 to 1 AWG
Die Code
54
Material of Construction
Wrought Copper
Description/Special Features
Ideal for Pigtailing, 2-way Splicing or Tapping to an Unbroken Continuous Main, 600V Applications
Item
C Tap
Standards
UL E9809
Special Features
Positive, All-Around Compression With Low Resistance and High Pull-Out Values
Finish
Plain
Maximum Voltage
600 V
For Conductor Material
Copper
Compatible with Product Type
Crimping Die
Termination Style
Crimp
Compatible Installation Tool Model Number
13456, 13463, 13475, 13477, 6TON54, TBM6254
Product Type
C-Tap
Surface Finishing
Plain
Special Functions
Positive, all-around compression with low resistance and high pull-out values.
