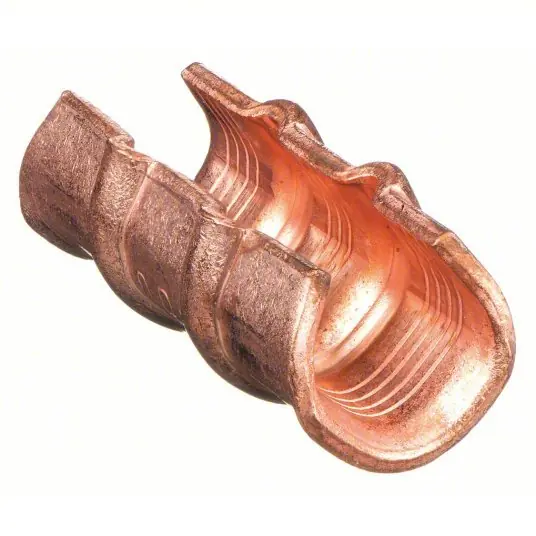

Thomas & Betts 54735 C Tap 1 AWG For Max Run Wire Size, 45 Die

C Tap, Color Code Black, Die Code 45, For Conductor Material Copper, For Maximum Equal Wire Size 1 AWG (Main), 3 AWG (Branch), For Minimum Equal Wire Size 12 AWG (Branch), 3 AWG (Main), For Maximum Tap Wire Size 3 AWG, For Minimum Tap Wire Size 12 AWG, For Maximum Run Wire Size 1 AWG, For Minimum Run Wire Size 3 AWG, Material Copper, Maximum Voltage 600 V, Finish Plain, Standards UL E9809, Termination Style Crimp

Material	Copper
Color Code	Black
Description/Special Features	Ideal for Pigtailing, 2-way Splicing or Tapping to an Unbroken Continuous Main, 600V Applications
Standards	UL E9809
Die Code	45
Material of Construction	Wrought Copper
Wire Range	Branch 3 to 12 AWG, Main 3 to 1 AWG
Item	C Tap
Maximum Voltage	600 V
Compatible Installation Tool Model Number	13455, 13462, 13474, 13477, 6TON45, TBM6245
Compatible with Product Type	Crimping Die
Special Features	Positive, All-Around Compression With Low Resistance and High Pull-Out Values
Termination Style	Crimp
For Conductor Material	Copper
Finish	Plain
Surface Finishing	Plain
Product Type	C-Tap
Voltage Rating	600 V
Special Functions	Positive, all-around compression with low resistance and high pull-out values.
UPC	786210547350
Features	Positive, all-around compression with low resistance and high pull-out values.; Ideal for pigtailing, 2-way splicing or tapping to an unbroken continuous main.; Heavy reinforcing ribs help locate compression dies and strengthen compressed joint
