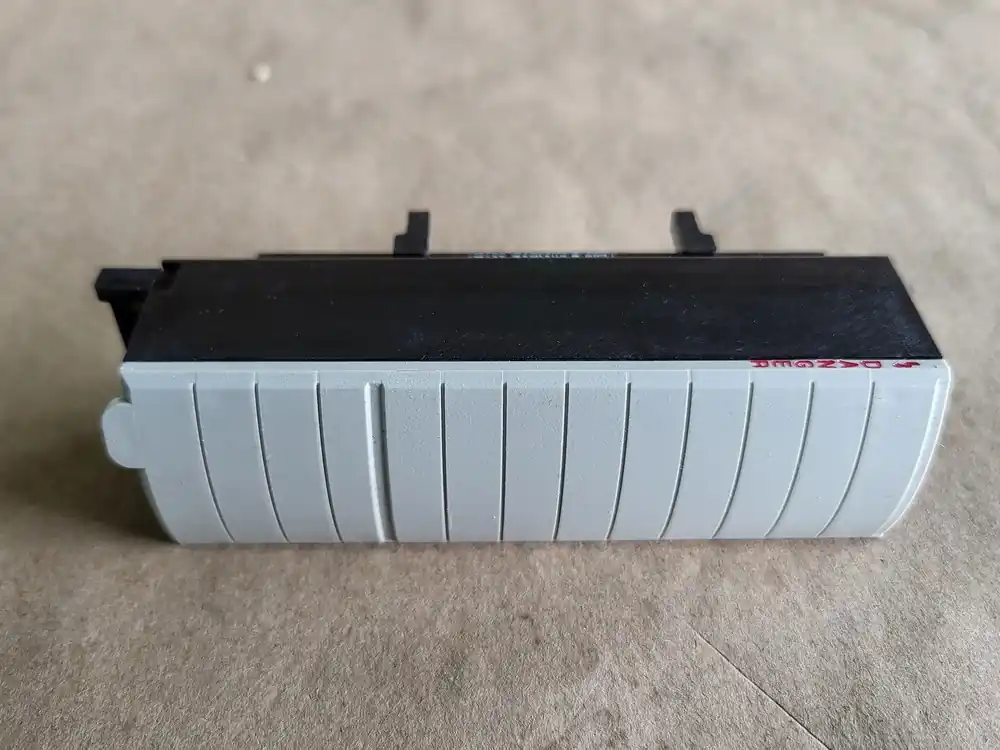

Terminal Block 1756-TBNH

Series: ControlLogix

Module Type: Terminal Block

Clamp Type: Screw-Clamp

No. of Pins: 20

Screw Torque: 1.36 Nm

Single Wire Connection: 0.33 to 2.1 mm. sq.

Double Wire Connection: 0.33 to 1.3 mm. sq.

Wire Type: Solid or Standard

Max. Wire Insulation: 90 deg. celsius or greater, 1.2 mm (3.64 in.)

Operating Temperature: 32-140 fahrenheit

Backplane Current (5 Volts): 1,200 milliamps

Backplane Current (24 Volts): 2.5 milliamps

Power Dissipation: 6.19 Watts

Wire Size: 20 AWG

Housing Style: Standard

Removable: Yes
