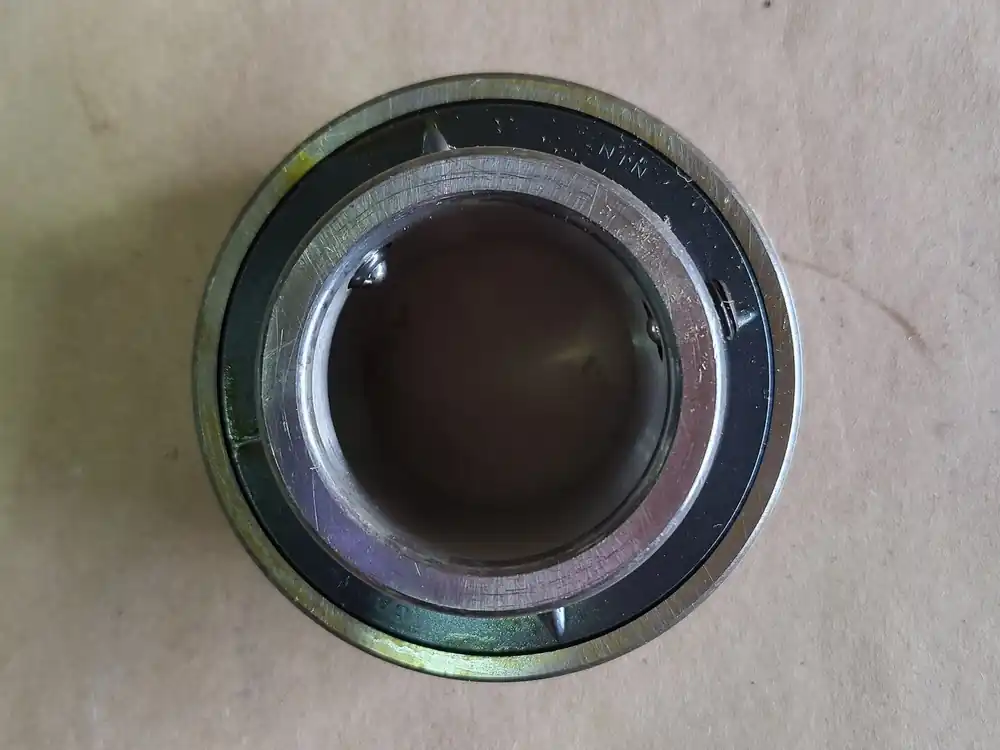

Standard-Duty Ball Bearing Insert UC208D1

Fillet Radius: 1.5 mm

Inside Diameter: 40 mm

Center of Bearing to Back of Inner Ring: 19 mm

Outer Ring Width: 24 mm

Inner Ring Width: 49.2 mm

Duty: Standard

Enclosure: Double-Sealed

Material: Through Hardened Steel

Seal Material: Nitrile Rubber

Lubrication: Relubricatable

Locking Device: SetScrew Locking

Inside Ring Type: Wide

Outer Ring Type: Spherical

Bore Type: Round Bore

Seal Type: Contact Seals

Screw Size: M8 x 1

Static Load Rating (Max): 4000 lbf

Dynamic Load Rating: 6550 lbf

Screw Distance: 8

Limiting Speed- Grease: 3700 rpm
