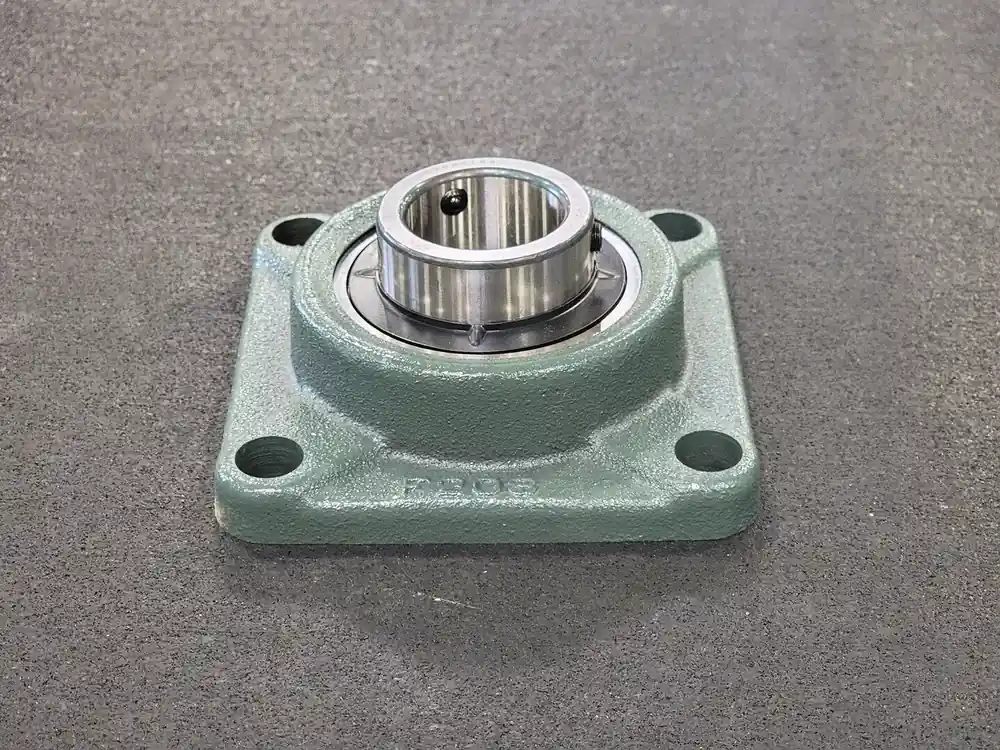

The Bolt Square Flange Block Bearing No. UCF208-108D1 is a product with a 1-1/2″ bore size. It has a width of 49.2 mm and a bolt spacing of 102 mm. The housing material is cast iron and it has a mounting of 4 bolts. The bolt size is 1/2″ and it has a set screw locking device. The rolling element is a ball bearing. It is part of the Housings collection and is a type of flange mount. The distance between bolts is 4 inches and it is compatible with a 1-1/2″ bore diameter. The price for this product is and there are 2 units available.
Specifications
Model
UCF208-108D1
Condition
Surplus New
General
Type
Flange Mount
Distance Between Bolts
4 in.
Housing Compatible Bore Diameter
1-1/2 in.
Other Specifications
Width: 49.2 mm/ 1.937 in.
Bolt Spacing: 102 mm/ 4 in
Bolt Circle Diameter: 144 mm/ 5.7 in
Housing Material: Cast Iron
Mounting: 4 Bolt
Bolt Size: 1/2″
Locking Device: Set Screw
Rolling Element: Ball Bearing
