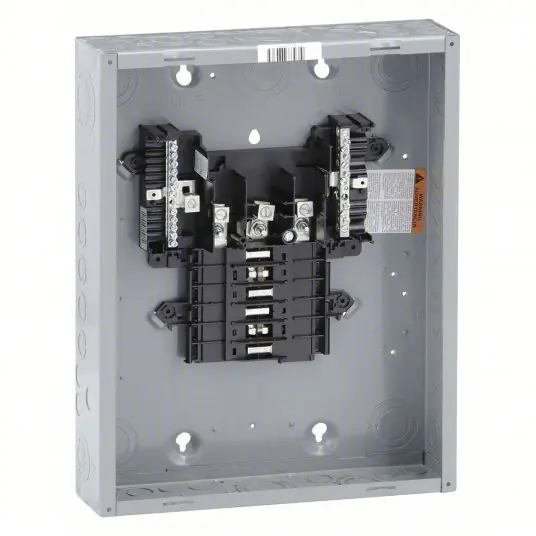

Square D QO312L125G Load Center, 12 Spaces, 125 A Amps, 208Y/120/240V AC, QO Circuit Breaker Type
Original price was: $449.66.$89.93Current price is: $89.93.
Load Center, Number of Spaces 12, Amps 125 A, Voltage 208Y/120/240V AC, Circuit Breaker Type QO, Included Enclosure Cover Order Separately, Main Circuit Breaker or Main Lug Main Lug, Max. No. of Tandem Breakers 0, Phase 3, Series QO, Height 17.91 in, Width 14.25 in, Depth 3 3/4 in, For Use With Square D QO Circuit Breakers, Bus Material Tin Plated Copper, Short Circuit Current Rating 65kA, Enclosure NEMA Rating 1, Recommended Flush Cover QOC16UF, Recommended Ground Bar Kit Included
| Item | Load Center |
| Enclosure NEMA Rating | 1 |
| Main Circuit Breaker or Main Lug | Main Lug |
| Number of Spaces | 12 |
| Phase | 3 |
| Voltage | 208Y/120/240V AC |
| Circuit Breaker Type | QO |
| Max. No. of Tandem Breakers | 0 |
| Amps | 125 A |
| Bus Material | Tin Plated Copper |
| Recommended Ground Bar Kit | Included |
| Recommended Surface Cover | QOC16US |
| Enclosure Material | Steel |
| Standards | RoHS Compliant, UL Listed |
| Series | QO |
| Special Features | Mercury Free |
| Short Circuit Current Rating | 65kA |
| Recommended Flush Cover | QOC16UF |
| Min. Operating Temp. | 23 Degrees F |
| Included Enclosure Cover | Order Separately |
| Color | Gray |
| Enclosure Surface Finish | Enamel |
| Max. Operating Temp. | 104 Degrees F |
| Location | Indoor |
| For Use With | Square D QO Circuit Breakers |
| Feed Location | Top/Bottom |
| Electrical Connection | lugs |
| Wiring Configuration | 3-wire || 4-wire |
| Primary/Ambient Air Temp. | -5°C || 40°C |
| Cover Type | order separately |
| Surface Finish | baked enamel Gray |
| Ground Bar Kit | grounding bar included (not installed) |
| Number Of Circuits | 12 |
| Tightening Torque | main lugs 50 lb.in, AWG 6…AWG 2/0, aluminium/copper || Cover 20 lb.in |
