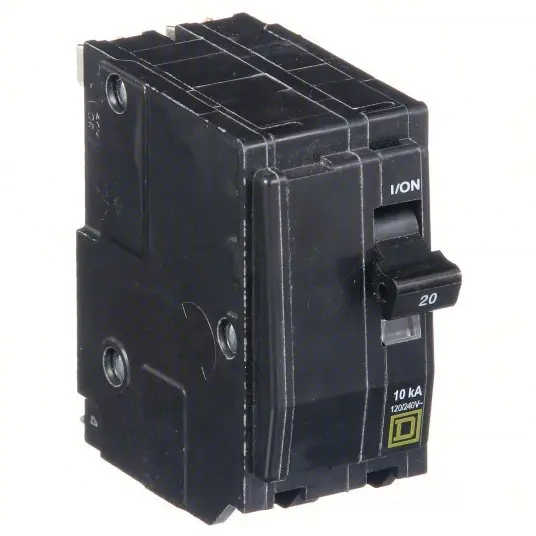

Miniature Circuit Breaker, Amps 20 A, AC Voltage Rating 120/240V AC, Circuit Breaker Type Standard, Number of Poles 2, DC Voltage Rating 48V DC, Circuit Breaker Actuator Paddle, Circuit Breaker Mounting Style Plug In, Compatible Panelboard/Load Center Series QO, Phase Single, Series QO, Max. AIR Rating 10kA at 120/240V AC, For Use With QO Load Centers and NQ Panelboards, Terminal Connection Pressure plate, Frame Size 100A/QO, Length 3 in, Width 1.5 in, Depth 2.91 in
Series
QO
Amps
20A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Type
Standard
Phase
1
Circuit Breaker Actuator
Paddle
Circuit Breaker Mounting Style
Plug In
Max. AIR Rating
10kA at 120/240V AC
Terminal Connection
Pressure plate
DC Voltage Rating
48V DC
For Use With
QO Load Centers and NQ Panelboards
Standards
CSA Certified, HACR, UL Listed
Features
Mercury Free
Interrupt Rating
10 kA at 120/240V AC
Application
HACR rated Applications
Min. Operating Temp.
104 Degrees F
Compatible Panelboard/Load Center Series
QO
Max. Operating Temp.
104 Degrees F
Certifications
UL Listed; CSA
Ratings
HACR rated
Ambient Temperature Rating
104°F (40°C)
Tightening Torque
35.40 lbf.in (4 N.m)
