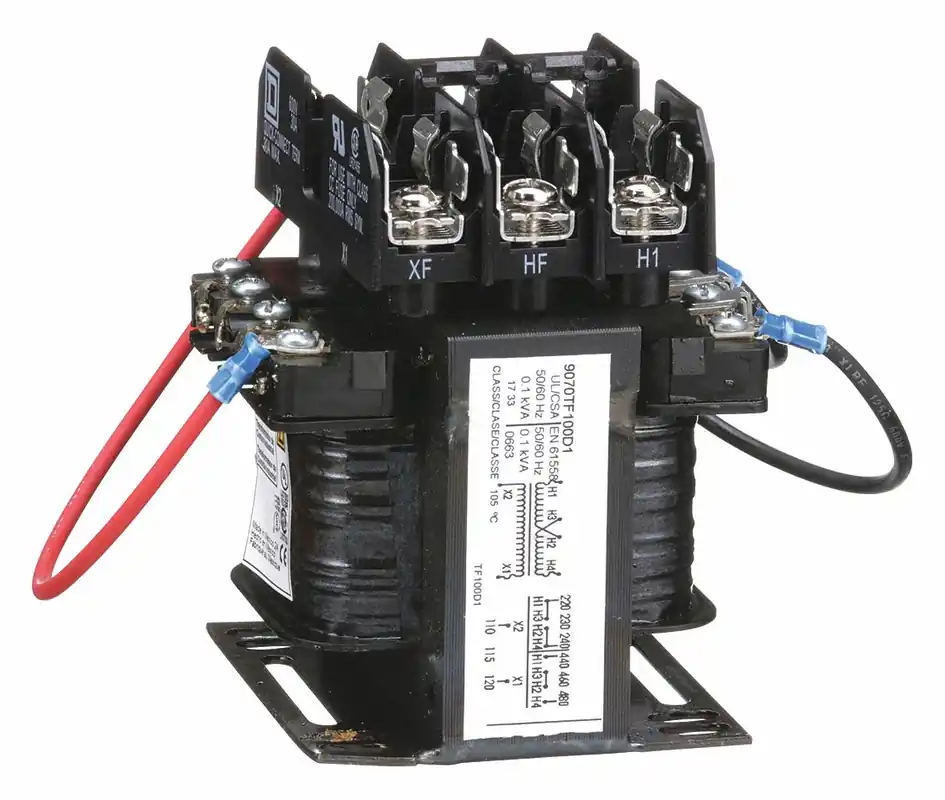

Square D 9070TF100D1 Control Transformer, 100 VA, 240/480V AC to 120V AC, 1-Phase, Fused, Foot Mount

Square D 9070TF100D1 Control Transformer, 100 VA, 240/480V AC to 120V AC, 1-Phase, Fused, Foot Mount

Original price was: $356.12.Current price is: $71.22.

SKU: SK0021498-US20260630-101428 Category: Tag:

Control Transformer, Input Voltage – Transformer 240V AC, 480V AC, Output Voltage – Transformer 120V AC, VA Rating – Transformer 100 VA, Protective Device Primary and Secondary Fuse, Enclosure Style – Transformer Open, Mounting – Transformer Foot, Phase – Electrical 1, Hz – Electrical 50 Hz, 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish

CAD Available Yes
Input Voltage – Transformer 240/480V AC
Output Voltage 120V AC
Power Rating 100 VA
Phase 1
Mounting – Transformer Foot
Hz – Electrical 50/60 Hz
NEMA Enclosure Rating Not Rated
Enclosure Finish Epoxy Resin Varnish
Standards CSA File LR37055 Guide 184-N-90, REACH, RoHS, UL Listed File E61239
Fused Yes
Enclosure Style – Transformer Open
Protective Device Primary and Secondary Fuse
Includes Top Mounted Fuse Block
Green Environmental Attribute Mercury Free; Pvc Free
Primary Connection Screw clamp terminals
Winding Material – Transformer Copper
Enclosure Type Open
Secondary Connection Screw clamp terminals
Insulation Max. Temp. 105 °C
Material Copper: winding
Fingersafe Cover Compatibility FSC1
Product Certifications UL listed file E61239; CSA file LR37055 guide 184-N-90
Primary To Secondary Voltage 240 x 480 V 120 V; 230 x 460 V 115 V; 220 x 440 V 110 V
Fuse Type 0.41 x 1.50 in CC top
Temperature Rise 55°C
Insulation Temperature 221°F (105°C)
For Fuse Class CC
Country of Origin Mexico
