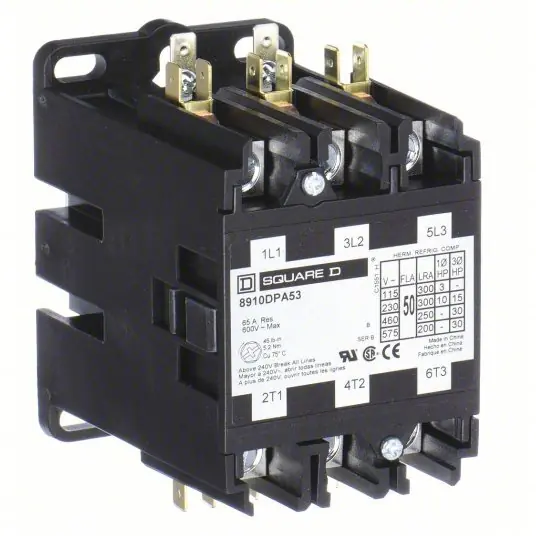

Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 24V AC, Series 8910 Series Type DPA, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase – 240V AC 10 hp, Horsepower @ Single Phase – 120V AC 5 hp, Full Load Current – Resistive 75 A
Item
Definite Purpose Magnetic Contactor
Full Load Amps-Inductive
60 A
Action
Non-Reversing
Full Load Amps-Resistive
75 A
Number of Poles
3
Coil Volts
24V AC
Reversing
No
HP @ 1 Phase – 230V
10
HP @ 1 Phase – 120V
5 hp
HP @ 3 Phase – 230V
25
HP @ 1 Phase – 240V
10 hp
HP @ 3 Phase – 240V
25 hp
HP @ 3 Phase – 575V
30 hp
Enclosure NEMA Rating
No Enclosure
HP @ 3 Phase – 480V
30 hp
Includes
Quick Connect Terminal
Hz
50/60
Enclosure Type
Open
Standards
CSA, RoHS, UL Listed
Series
8910 Series Type DPA
Phase
Three
Full Load Current – Resistive
75 A
Number of Normally Open Main Contacts
3
Frequency
50/60 Hz
Horsepower @ Three Phase – 240V AC
25 hp
LED Lighting Current Rating
Not Applicable
Terminal Connection Type
Box Lugs, Quick-Disconnect Terminals
Coil Voltage
24V AC
Includes Shunt
Not Applicable
Locked Rotor Load
240 A @ 575V AC, 300 A @ 460V AC, 360 A @ 277V AC
Reversing Capability
Non-Reversing
Contactor Style
HVACR Definite Purpose Contactor
Horsepower @ Three Phase – 480V AC
30 hp
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase – 600V AC
50 hp
Horsepower @ Single Phase – 120V AC
5 hp
Tungsten Lighting Current Rating
Not Applicable
Maximum Voltage Rating
600V AC
Fluorescent Lighting Current Rating
Not Applicable
NEMA Enclosure Material
Not Applicable
Horsepower @ Single Phase – 240V AC
10 hp
Full Load Current – Inductive
60 A
Pole Contact Composition
3 NO
Electrical Connection
Box lugs; Quick connect terminals
Control Circuit Voltage
24 V AC 50/60 Hz
Product Certifications
UL Recognized; CSA
Locked Rotor Rated Current
360 A 277 V AC; 300 A 460 V AC; 240 A 575 V AC
Maximum Horse Power Rating
5 hp 115 V AC, 1 phase; 10 hp 230 V AC, 1 phase; 30 hp 460 V AC, 3 phase; 30 hp 575 V AC, 3 phase; 25 hp 230 V AC, 3 phase
Rated Operational Voltage
600 V AC
Product Or Component Type
Definite Purpose Contactor
