Drum Switch, Switch Action Maintained, Momentary, Phase Single, Reversing Capability Reversing, Horsepower @ Three Phase – 240V AC 5 hp, Horsepower @ Three Phase – 480V AC 7 1/2 hp, Maximum Voltage Rating 250V DC, 600V AC, Terminal Connection Type Screw Clamp Terminals, Horsepower @ Single Phase – 120V AC 1 1/2 hp, NEMA Enclosure Rating 1, Number of Poles 3, Horsepower @ Single Phase – 240V AC 3 hp, Standards CSA Cetrified, UL Listed, Overall Width 2.68 in, Overall Depth 4.61 in
Type
B
NEMA Rating
1
Handle Material
Plastic
HP @ 1 Phase – 240V
3 hp
Item
Drum Switch
Number of Poles
3
HP @ 1 Phase – 115V
1 1/2 hp
HP @ 3 Phase – 460V
7 1/2 hp
HP @ 115VDC
2 hp
HP @ 3 Phase – 240V
5 hp
HP @ 230VDC
2 hp
Action
Maintained/Momentary Reversing
Standards
CSA Cetrified, UL Listed
HP @ 3 Phase – 460-575V
7 1/2 hp
NEMA Enclosure Rating
1
Terminal Connection Type
Screw Clamp Terminals
Switch Action
Maintained, Momentary
Horsepower @ Three Phase – 480V AC
7 1/2 hp
Horsepower @ 230V DC
2 hp
Phase
Single
Maximum Voltage Rating
250V DC, 600V AC
Horsepower @ Single Phase – 120V AC
1 1/2 hp
Reversing Capability
Reversing
Horsepower @ Three Phase – 240V AC
5 hp
Horsepower @ 115V DC
2 hp
Horsepower @ Single Phase – 240V AC
3 hp
Horsepower
1.5 hp 115 V AC, 1 phase; 3 hp 230 V AC, 1 phase; 5 hp 460 V AC, 1 phase; 5 hp 575 V AC, 1 phase; 5 hp 200 V AC, 3 phase; 5 hp 230 V AC, 3 phase; 7.5 hp 460 V AC, 3 phase; 7.5 hp 575 V AC, 3 phase; 2 hp 115 V DC; 2 hp 230 V DC
Electrical Connection
Screw-clamp terminals
Certifications
UL Listed; CSA
Enclosure Rating
NEMA 1
Maximum Rated Voltage
600 V AC; 250 V DC
Reviews
There are no reviews yet.

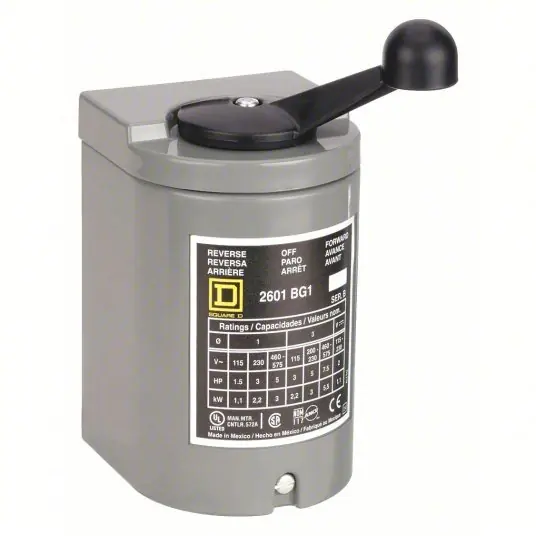

Be the first to review “Square D 2601BG1 Drum Switch 3 Poles, Maintained/Momentary Action, NEMA-Rated 1, Plastic, Screw Clamp”Cancel Reply
