Manual Motor Switch, Current AC 30 A, Hazardous Location Specification Not Applicable, Horsepower @ Single Phase – 120V AC 2 hp, Horsepower @ Single Phase – 240V AC 2 hp, Horsepower @ Three Phase – 240V AC 2 hp, Horsepower @ Three Phase – 480V AC 3 hp, Horsepower @ Three Phase – 600V AC 3 hp, Includes Pilot Light Yes, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Hub Diameter 0.75 in, Hub Type Dead End
Operator
Toggle Switch
Type
K
Enclosure NEMA Rating
4
Amps AC
30 A
Item
Manual Motor Switch
Starter Type
NEMA Style
Number of Poles
2
HP @ 3 Phase – 480V
3 hp
Max. Voltage
600 V AC
HP @ 115VDC
2 hp
HP @ 3 Phase – 240V
2 hp
HP @ 1 Phase – 120V
2 hp
Pilot Light
Yes
Description/Special Features
Pilot Light
HP @ 1 Phase – 230V
2 hp
HP @ 230VDC
1 1/2 hp
HP @ 3 Phase – 460-575V
3 hp
Phase Loss Sensitivity
No
Standards
CSA LR25490 Class 3211 05, UL Listed E42243 CCN NLRV
HP @ 3 Phase – 575V
3 hp
Cable Entry
0.75 NPT (bottom)
Control Type
toggle
Phase
Single
Electrical Connection
screw clamp terminals
Product Certifications
UL listed file E42243 CCN NLRV || CSA LR25490 class 3211 05
Awg Gauge
AWG 14 to AWG 10 copper
Local Signalling
red indicator, 115 V
Line Rated Current
30 A
Maximum Horse Power Rating
2 hp 115 V AC || 2 hp 230 V AC || 3 hp 460 V AC || 3 hp 575 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC
Poles Description
2P
Product Or Component Type
Single Unit Manual Switch
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Nema Degree Of Protection
NEMA 4 die cast zinc alloy standard size
Motor Starter Type
non reversing
Horsepower @ Three Phase – 240V AC
2 hp
Series
Type K, Class 2510
Horsepower @ 230V DC
1 1/2 hp
Horsepower @ Three Phase – 600V AC
3 hp
Terminal Connection Type
Screw Terminals
Horsepower @ Three Phase – 480V AC
3 hp
Horsepower @ Single Phase – 120V AC
2 hp
NEMA Enclosure Rating
4
Maximum Voltage Rating
230V DC, 600V AC
Hazardous Location Specification
Not Applicable
Mounting Style
Surface
Horsepower @ Single Phase – 240V AC
2 hp
Starter Style
NEMA
Includes Pilot Light
Yes
Current AC
30 A
Hub Type
Dead End
Horsepower @ 115V DC
2 hp
Horsepower Rating
2 hp 115 V AC; 2 hp 230 V AC; 3 hp 460 V AC; 3 hp 575 V AC; 1 hp 90 V DC; 2 hp 115 V DC; 1.5 hp 230 V DC
Certifications
UL listed file E42243 CCN NLRV; CSA LR25490 class 3211 05
Number Of Phases
1 phase
Reviews
There are no reviews yet.

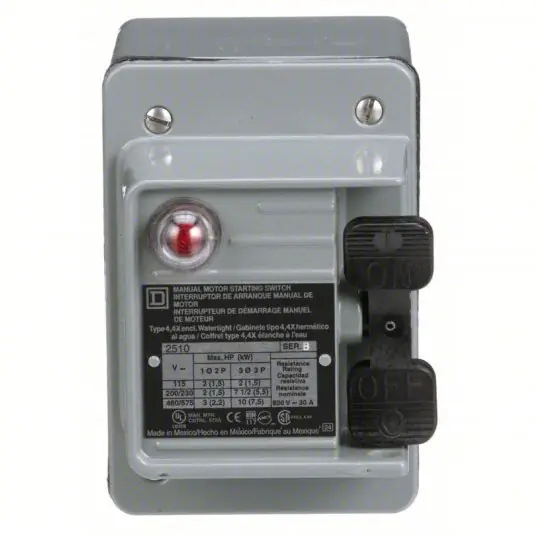

Be the first to review “Square D 2510KW1A Manual Motor Switch 2 Poles, 30 A, 4 NEMA Rating, Pilot Light Red Light (115V AC)”Cancel Reply
