Manual Motor Switch, Current AC 20 A, Hazardous Location Specification Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G, Horsepower @ Single Phase – 120V AC 2 hp, Horsepower @ Single Phase – 240V AC 7 1/2 hp, Horsepower @ Three Phase – 240V AC 7 1/2 hp, Horsepower @ Three Phase – 480V AC 10 hp, Horsepower @ Three Phase – 600V AC 10 hp, Includes Pilot Light No, Number of Poles 3, Operator Toggle Switch, Phase Three, Starter Style NEMA, Terminal Connection Type Screw Terminals
Operator
Toggle Switch
Enclosure NEMA Rating
3R, 7, 9
Amps AC
30 A
Item
Manual Motor Switch
Starter Type
NEMA Style
Number of Poles
3
HP @ 3 Phase – 480V
10 hp
Max. Voltage
600 V AC
HP @ 115VDC
2 hp
HP @ 1 Phase – 120V
2 hp
HP @ 3 Phase – 240V
7 1/2 hp
Pilot Light
No
Description/Special Features
Hazardous Location
Standards
Class I, Group B, C, D; Class II, Group E, F, G, CSA LR26817 Class 3218 04, UL Listed E58760 CCN NPXZ
HP @ 3 Phase – 575V
10 hp
HP @ 3 Phase – 460-575V
10 hp
Phase Loss Sensitivity
No
HP @ 1 Phase – 230V
7 1/2 hp
HP @ 230VDC
1 1/2 hp
Electrical Connection
screw clamp terminals
Poles Description
3P
Line Rated Current
20 A
Nema Degree Of Protection
NEMA 3R/7/9 Cast Aluminium standard size
[Ue] Rated Operational Voltage
600 V AC || 230 V DC
Product Certifications
UL listed file E58760 CCN NPXZ || CSA LR26817 class 3218 04
Control Type
toggle
Maximum Horse Power Rating
2 hp 115 V AC || 1 hp 90 V DC || 2 hp 115 V DC || 1.5 hp 230 V DC || 7.5 hp 230 V AC || 10 hp 460 V AC || 10 hp 575 V AC
Phase
Three
Local Signalling
no indicator
Product Or Component Type
Single Unit Manual Switch
Awg Gauge
AWG 14 to AWG 10 copper
Motor Starter Type
non reversing
Cable Entry
0.75 NPT (bottom)
Starter Style
NEMA
NEMA Enclosure Rating
3R, 7, 9
Hub Type
Dead End
Series
Type K, Class 2510
Horsepower @ Single Phase – 120V AC
2 hp
Terminal Connection Type
Screw Terminals
Mounting Style
Surface
Hazardous Location Specification
Class I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Horsepower @ 230V DC
1 1/2 hp
Includes Pilot Light
No
Horsepower @ Three Phase – 480V AC
10 hp
Horsepower @ 115V DC
2 hp
Current AC
20 A
Maximum Voltage Rating
230V DC, 600V AC
Horsepower @ Single Phase – 240V AC
7 1/2 hp
Horsepower @ Three Phase – 240V AC
7 1/2 hp
Horsepower @ Three Phase – 600V AC
10 hp
Reviews
There are no reviews yet.

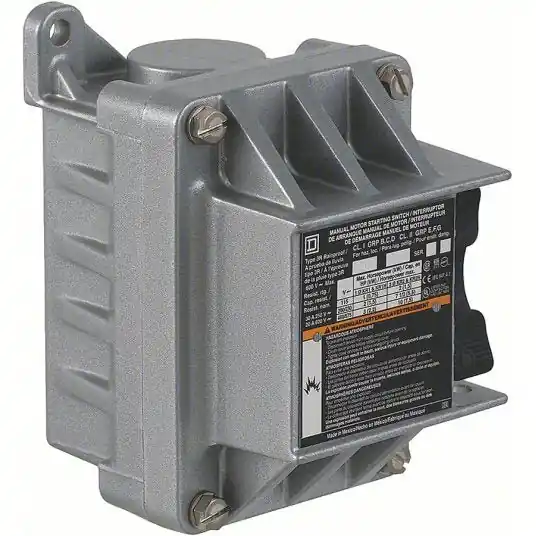

Be the first to review “Square D 2510KR2 Manual Motor Switch 3 Poles, 20 A, 0.75 in Hub Dia, Dead End”Cancel Reply
