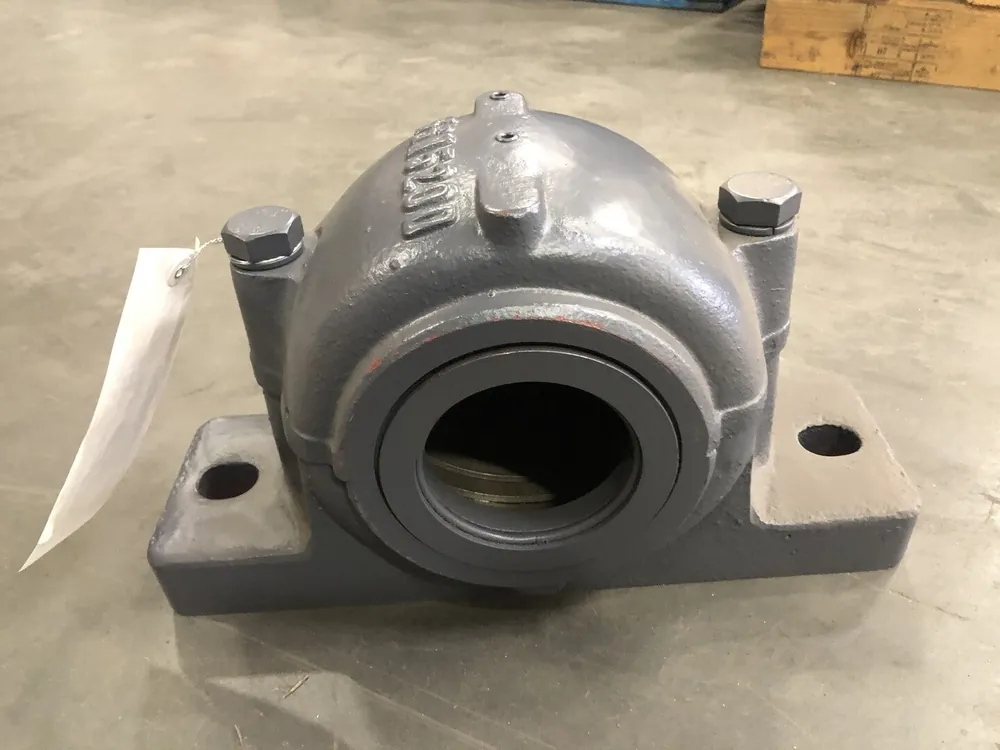

Split Plummer Block Bearing Housing SSN-520D
Original price was: $51.00.$15.30Current price is: $15.30.
| Specifications | |
|---|---|
| Model | SSN-520D |
| Condition | Surplus New | General |
| Type | Split Plummer Block |
| Height | 218 mm |
| Outside Length | 380 mm |
| Base to Bore Centerline | 112 mm |
| Distance Between Bolts | 320 mm |
| Housing Compatible Bore Diameter | 90 mm |
| Compatible Bearing Series/Part # | 22220K, 23220K |
| Compatible Bearing Types | Spherical Roller |
| Other Specifications |
|---|
|
Shaft Diameter: 90 mm, 3-1/2 in.
Outside Diameter: 180 mm
Base Width: 110 mm
Base Center Height: 112 mm
Bolt Hole Center Length: 320 mm
Mounting: 2 Bolts, M24, 7/8 in.
Seal: FS165 x 8.5 x 10
Bearing No.: 22220K/ 23220K
Adapter Sleeve: H320/ H2320
Locating Ring: FR 180 x 12.1/ FR 180 x 10
|
