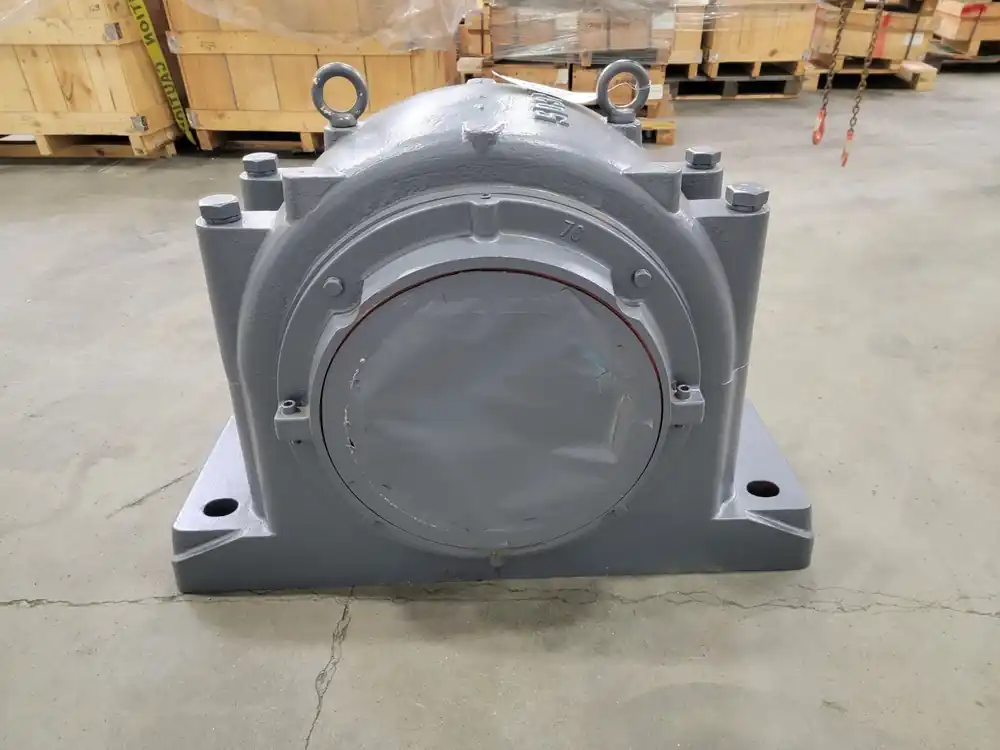

Split Plummer Block Bearing Housing No. SD3176ND
Original price was: $2,817.00.$298.98Current price is: $298.98.
| Specifications | |
|---|---|
| Model | SD3176ND |
| Condition | Surplus New | General |
| Type | Split Plummer Block |
| Height | 750 mm |
| Outside Length | 1120 mm |
| Base to Bore Centerline | 380 mm |
| Distance Between Bolts | 980 mm |
| Housing Compatible Bore Diameter | 360 mm |
| Compatible Bearing Series/Part # | 23176K |
| Compatible Bearing Types | Spherical Roller |
| Other Specifications |
|---|
|
Shaft Diameter: 360 mm
Outside Diameter: 620 mm
Base Width: 400 mm
Base Center Height: 380 mm
Bolt Hole Center Length: 980 mm
Bolt Hole Center Width: 255 mm
Mounting: 4 Bolts, M55
Bearing No.: 23176K
Adapter Sleeve: H3176
Locating Ring: SR620x10
Cover: Taconite Cover No. 76
|
