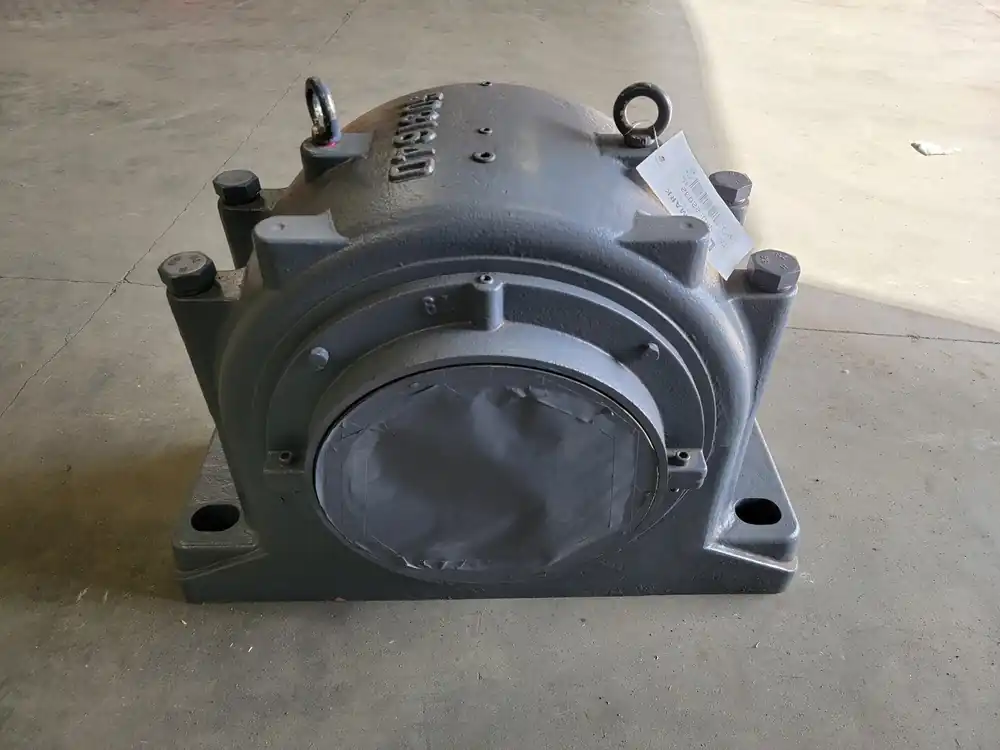

Split Plummer Block Bearing Housing 11.8″ Bore, SD3164D
Original price was: $6,037.00.$298.98Current price is: $298.98.
| Specifications | |
|---|---|
| Model | SD3164D |
| Condition | Surplus New | General |
| Type | Split Plummer Block |
| Height | 630 mm |
| Outside Length | 880 mm |
| Base to Bore Centerline | 320 mm |
| Distance Between Bolts | 750 mm |
| Housing Compatible Bore Diameter | 300 mm |
| Compatible Bearing Series/Part # | 23164K |
| Compatible Bearing Types | Spherical Bearing |
| Other Specifications |
|---|
|
Shaft Diameter: 300 mm
Outside Diameter: 540 mm
Base Width: 330 mm
Base Center Height: 320 mm
Bolt Hole Center Length: 750 mm
Bolt Hole Center Width: 200 mm
Mounting: 4 Bolts, M36
Bearing No.: 23164K
Adapter Sleeve: H3164
Locating Ring: SR540x10
Cover: Taconite Cover No. 64
|
