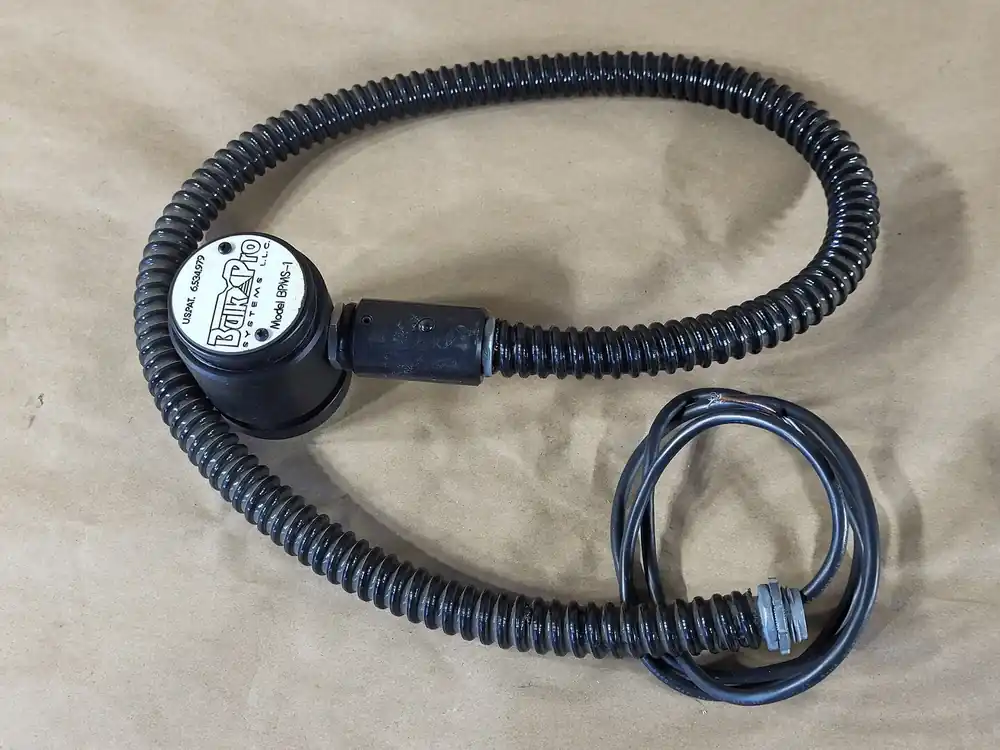

Speed Switch BPMS-1

Max Current Load: 250mA @ 25°C and 200mA@ 70°C

Switching Frequency: 120 Hz

Leakage Current: 1.7mA max leakage @ 120 VAC, -<2.0mA VDC

Voltage Drop: -<4V@ >25mA

Holding Current: 5mA max

Protection: Resettable short circuit overload protection

Switching Hysteresis: 2-20% of rated sensing distance

Repeat Accuracy: <3% sensing distance

Output Indicator LED: 360° viewable LED

Operating Temperature: -13° to 158°F (-25° to 70°C)

Enclosure Rating: NEMA-4, 4X, 6, 6P, 12 and 13 (IP-67)

Shock: 30g sine wave, 11 mS per IEC68-2-76

Vibration: 10 to 50 Hz, 1mm amplitude

Housing: Stainless steel, polycarbonate end balls, Ryton front cap (Proximity Sensor)

Cable: AWM style 2038 (PVC)

With barrier box approved for Class I and II, Div. 1, Groups, A, B, C, D, E, F & G.
