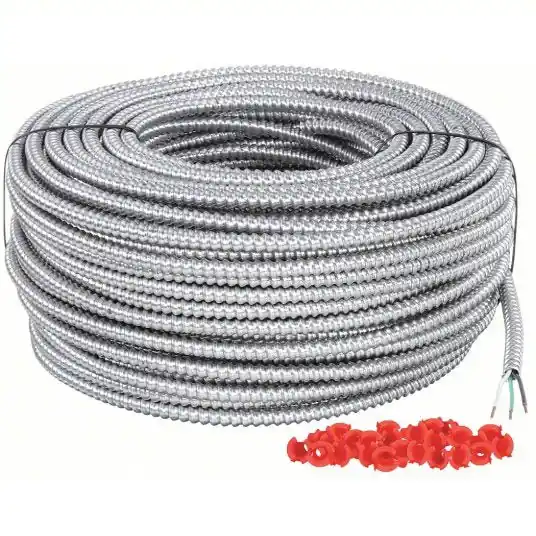

Metal Clad Armored Cable, Trade Designation MC, Wire Size 12 AWG, Number of Conductors 2 with Insulated CU Ground, Wire Color Black/Green/White, Jacket Color Silver, Length 250 ft, Conductor Design Solid, Jacket Material Aluminum, Insulation Material Nylon, PVC, Nominal Outside Dia. 0.475 in, Packaging Coil, Voltage 600 V, Temp. Rating -14 Degrees to 90 Degrees C Dry
Number of Conductors
2 with Ground
Jacket Color
Silver
Jacket Material
Aluminum
Item
Metal Clad Armored Cable
Jacket Material (Wire and Cable)
Aluminum
Cable Type – Wire and Cable
MC
Wire and Cable Item
Metal Clad Armored Cable
Stranded / Solid
Solid
Jacket Material – Wire and Cable
Aluminum
Application
Indoor
Standards
UL 83, 1569, 1685, NEC Article 330, Federal Specification A-A59544 (Formerly J-C-30B), FT4/IEEE 1202, Vertical Cable Tray Flame Test, Listed for Use In UL 1, 2 and 3 Hour Through Penetration Firestop Systems
Temp. Rating
-14 Degrees to 90 Degrees C Dry
Wire Color
Black/Green/White
Voltage
600 V
Max. Amps
20
Cable Type (Wire and Cable)
MC
Trade Designation
MC
Insulation Material
Nylon, PVC
Conductor Design
Solid
Packaging
Coil
Nom. Od (Mils)
487mils
Insulation Thickness (Mils)
15mils
Applications
Southwire Armorlite® Type MC Cable is suitable for use as follows: Branch, feeder and service power distribution in commercial, industrial, institutional, and Mult residential buildings. Fished or embedded in plaster. Concealed or exposed installations Environmental air-handling spaces per NEC 300.22 (C).Places of Assembly per NEC 518.4 and theaters per NEC 520.5. Installation in cable tray and approved raceways. Under raised floors for information technology equipment conductors and cables per NEC 645.5(D) & 645.5(D)(2).Class I Div. 2, Class II Div 2, & Class III Div. 1 Hazardous Locations.
Construction
Southwire Armorlite® Type MC Cable is constructed with soft-drawn copper, Type THHN/THWN conductors rated 90°C dry available in sizes 14 AWG through 2 AWG, and a green insulated grounding conductor. The conductors are cabled together and a binder tape bearing the print legend is wrapped around the assembly. Aluminum interlocking armor is applied over the assembly.
No. of Conductors
2
No. of Strands
1
