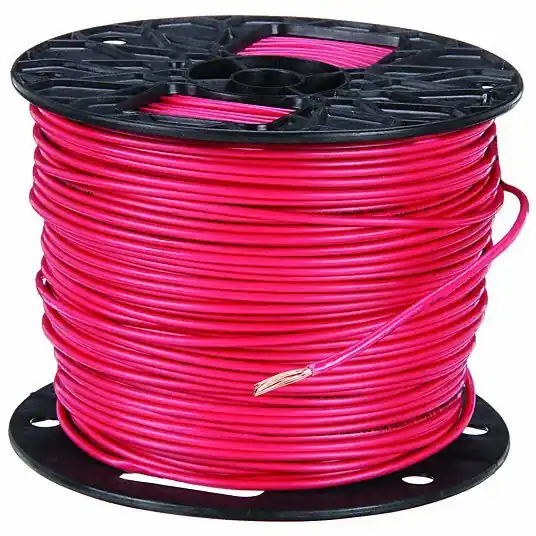

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Red, Length 500 ft, Conductor Design Stranded, Number of Conductors 1, Jacket Material Nylon, Insulation Material PVC, Nominal Outside Dia. 0.16 in, Packaging Spool, Jacket Color Red, Voltage 600V AC, Stranding 19
Item
Building Wire
Trade Designation
THHN
Voltage
600V AC
Jacket Color
Red
Insulation Material
PVC
Temp. Rating
194 Degrees F
Jacket Material
Nylon
Wire Color
Red
Number of Conductors
1
Conductor Design
Stranded
Insulation Material (Wire and Cable)
PVC
Stranding
19
Wire and Cable Item
Building Wire
Max. Amps
30
Jacket Material – Wire and Cable
Nylon
Standards
UL,E34382
Stranded / Solid
Stranded
Wire Type
THHN
Packaging
Plastic Spool
Insulation Material – Wire and Cable
PVC
Wire Type – Wire and Cable
THHN
Application
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Product Type
Building Wire
No. of Strands
19
Allowable Ampacity At 75C
30
Insulation Thickness (Mils)
20mils
No. of Conductors
1
Allowable Ampacity At 60C
30
Allowable Ampacity At 90C
30
Construction
ConstructionSouthwire® THHN copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket. Marked as THWN.
Jacket Thickness (Mils)
5mils
Applications
ApplicationTHHN copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts.THWN- Wet locations not to exceed 75° C or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Nom. Od (Mils)
165mils
Package Quantity
1
