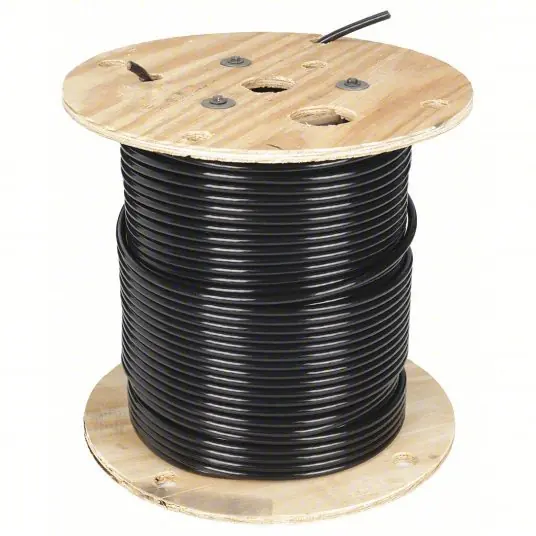

If you are looking for a building wire that is durable and easy to use, the Southwire Building Wire is what you need. It has a voltage of 600V AC and comes with a 2 AWG size. The length of this building wire is 500 ft. Designed for both indoor and outdoor use, it comes with a black nylon jacket that provides insulation from moisture. Its stranded conductor ensures high conductivity, while its PVC jacket protects against abrasion. When it comes to construction materials, the Southwire Building Wire will get the job done without any problems.
Item
Building Wire
Trade Designation
THHN
Voltage
600V AC
Jacket Color
Black
Insulation Material
PVC
Temp. Rating
194 Degrees F
Jacket Material
Nylon
Wire Color
Black
Number of Conductors
1
Conductor Design
Stranded
Wire Type – Wire and Cable
THHN
Jacket Material – Wire and Cable
Nylon
Stranded / Solid
Stranded
Max. Amps
115
Insulation Material – Wire and Cable
PVC
Wire Type
THHN
Standards
UL,E34382
Insulation Material (Wire and Cable)
PVC
Wire and Cable Item
Building Wire
Packaging
Wood Reel with Fiber Drum
Stranding
19
Application
Wet or Dry Locations (Below 90°C), Locations Exposed to Oil (Below 75°C)
Nom. Od (Mils)
382mils
No. of Strands
19
Allowable Ampacity At 60C
95
Allowable Ampacity At 75C
115
Allowable Ampacity At 90C
130
Jacket Thickness (Mils)
7mils
No. of Conductors
1
Applications
ApplicationSouthwire® SIMpull THHN® copper conductors are primarily used in conduit and cable trays for services, feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code. Voltage for all applications is 600 volts. SIMpull THHN® copper conductors are designed to be installed without application of a pulling lubricant.THWN-2- Wet or dry locations not to exceed 90° C or locations not to exceed 75° C when exposed to oil
Construction
ConstructionSouthwire® SIMpull THHN® copper conductors are made with soft drawn copper. Combination-unilay stranding. The wire is covered with a tough heat and moisture resistant PVC insulation with an overall nylon jacket utilizing SIMpull® Technology. Marked as THWN-2. Marked sunlight resistant.
Insulation Thickness (Mils)
40mils
