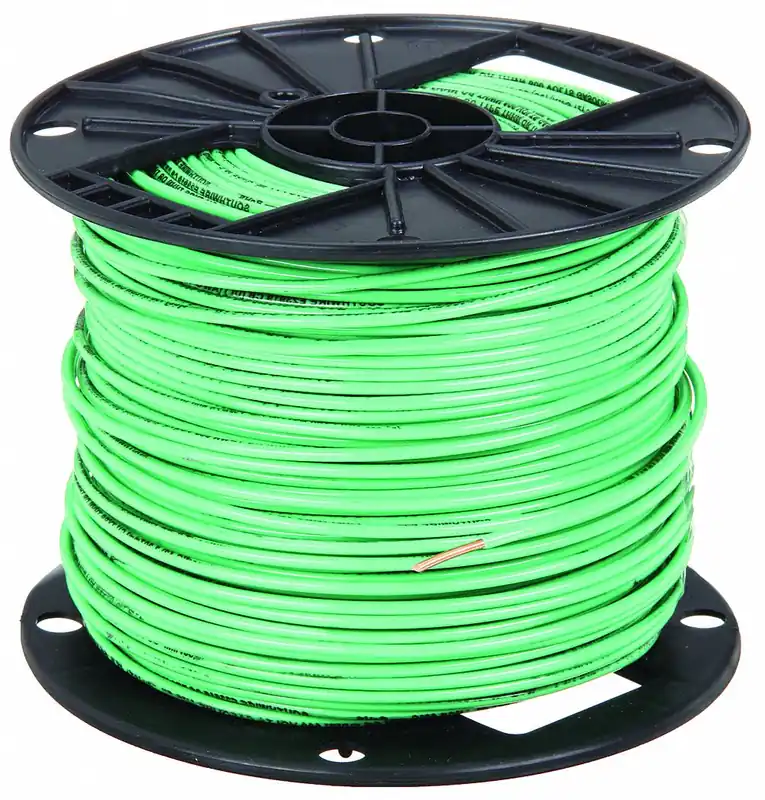

Building Wire, Trade Designation THHN, Wire Size 10 AWG, Wire Color Green, Length 500 ft, Conductor Design Solid, Number of Conductors 1, Jacket Material Not Applicable, Insulation Material PVC, Nominal Outside Dia. 0.15 in, Packaging Spool, Jacket Color Not Applicable, Voltage 600 V, Stranding 1
Wire Size
10 AWG
Length
500 ft
Nominal Outside Dia.
0.15 in
Overall Length
500 ft
Insulation Thickness (Mils)
20mils
Jacket Thickness (Mils)
5mils
Minimum Bend Radius
5/8 in
Nominal Outside Diameter
0.15 in
Conductor Size
10 AWG
Trade Designation
THHN
Conductor Material
Copper
Number of Conductors
1C
Wire Color
Green
Jacket Color
Green
Jacket Material
Nylon
Conductor Design
Solid
Insulation Material
PVC
Voltage
600V AC
Temp. Rating
194°F
Standards
UL Listed, E34382
Packaging
Spool
Stranding
1
Max. Amps
30
Application
Wet Locations and Locations Exposed to Oil (Below 75°C), Dry Locations (Below 90°C)
Allowable Ampacity At 75C
30
Conductor Insulation Color
Green
Fire Resistance Rating
Not Rated
Temperature Rating – Maximum Dry
194 Degrees F
Conductor Insulation Material
Nylon, PVC
Number of Strands
1
Temperature Rating – Maximum Wet
167 Degrees F
Country of Origin
United States
