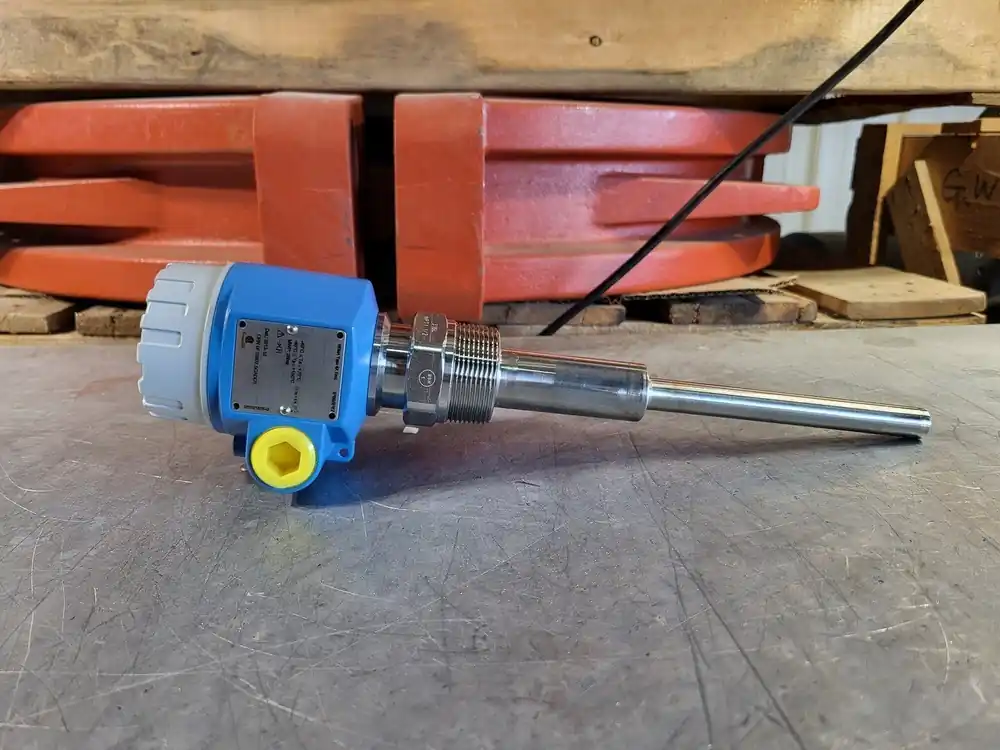

The Soliphant T Vibronic Point Level Detection FTM20-CN26A is a compact point level switch designed for measuring the level of fine grained solids with a grain size of 25mm or smaller. It utilizes vibration solids measuring principle and requires no calibration. The switch is not affected by build-up or external vibration and is very robust. The switch value is visible from outside. It can be powered by 10-45V DC or 19-253 VAC relay DC PNP and has an ambient temperature range of -40°C to 70°C and a process temperature range of -40°C to 150°C. The maximum process pressure is 25 bar. The process connection is available in various thread sizes. The switch has various certifications and approvals, including ATEX, FM, CSA, IEC Ex, NEPSI, INMETRO, and EAC.
Specifications
Model
FTM20-CN26A
S/N:
HA01000107B
Condition
Surplus New
Other Specifications
Measuring principle: Vibration Solids
Min. density of medium: 200 g/l
Main wetted parts: 316L
Sensor length: 225 mm (9″)
Characteristic / Application:
Compact point level switch for fine grained solids
