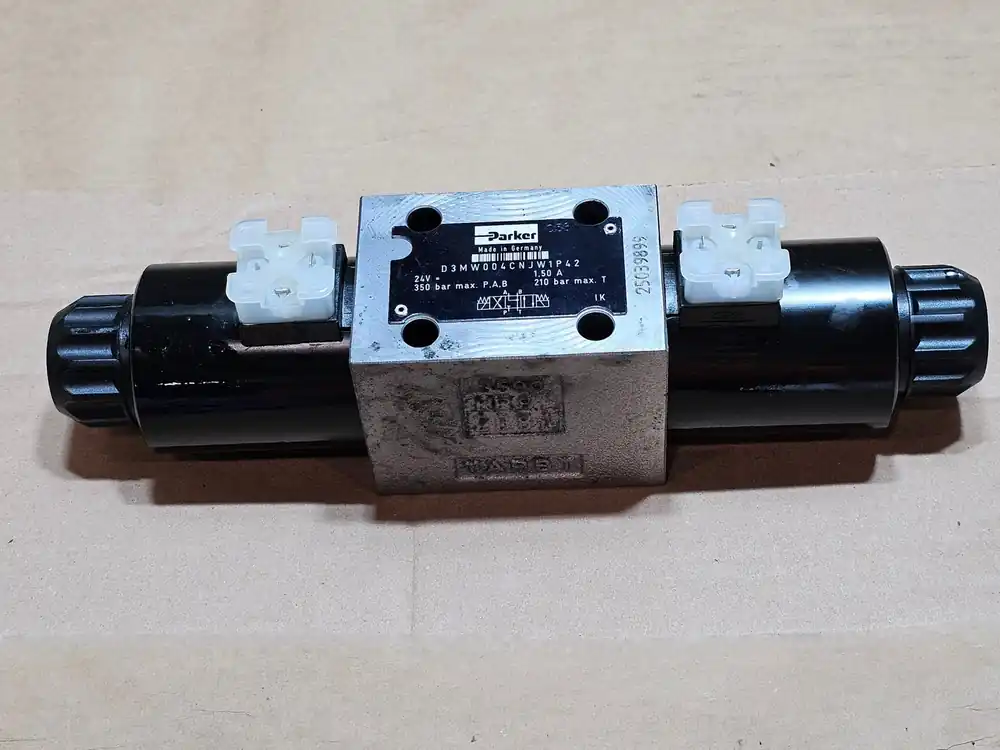

Solenoid Valve D3MW004CNJW1P42

Solenoid Valve D3MW004CNJW1P42

Original price was: $292.00.Current price is: $73.00.

SKU: SK0052348-US20260630-101428 Category: Tag:

Parker’s directional control valves series D1MW (NG06) / D3MW (NG10) are optimally suited for mobile applications due to an excellent surface protection. They provide high flow rates and a wide range of connector versions.

Specifications
Model D3MW004CNJW1P42
Made In GERMANY
Condition Surplus New
Other Specifications

Overview:

Specs

  1. Product Series: Directional control valve

  2. Port Connection: NG10 / CETOP 05

  3. Solenoid Connection: EN 175301-803

  4. Division: Industrial Systems Division Europe

  5. Function: 3-way

  6. Corrosion Resistance Included: Anti corrosion coating

  7. Signal Input: 24 V

  8. Seal Material: NBR

  9. Body Material: Cast iron

  10. Solenoid Option: Standard solenoid

  11. Spool Position: 3 positions, spring offset in position 0, operated in position a or b

  12. Mounting Position: Unrestriced, preferably horizontal

  13. Maximum Operating Pressure: 350 bar

  14. Maximum Flow Rate: 150 L/min

  15. Nominal Size: NG10 / CETOP 05

  16. Maximum Operating Temperature: 60 °C

  17. Minimum Operating Temperature: -25 °C

  18. For Fluid Type: Hydraulic oil according to DIN 51524

  19. Mounting Type: Subplate mounting

  20. Actuation Type: Solenoid

  21. Operation Type: Direct
