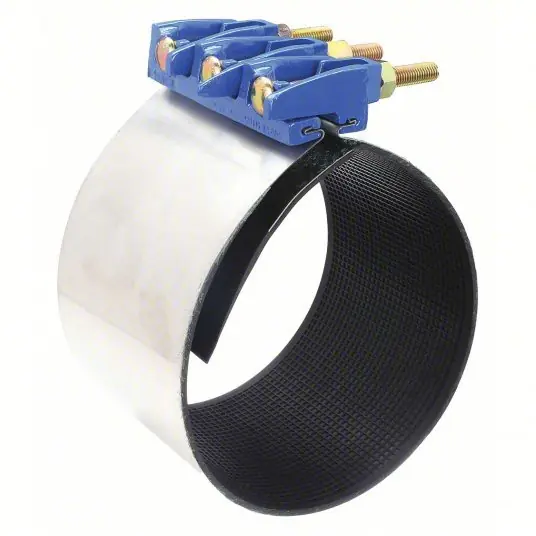

Repair Clamp, Bolt Material Steel, Clamp Material Stainless Steel, Clamp Material Grade 304, For Maximum Copper Tube Size 12 in, For Maximum Outside Diameter 13 1/2 in, For Minimum Copper Tube Size 2 in, For Minimum Outside Diameter 13 1/8 in, For Pipe Size 12 in, Gasket Coverage Full Coverage, Gasket Material Nitrile Rubber, Maximum Operating Pressure 300 psI, Maximum Vacuum Pressure 10 psi, Number of Bolts 3, Outlet Connection Type Not Applicable, Overall Length 7.5 in
Type
Full Circle
Gasket Material
Nitrile Rubber
Material
304 Stainless Steel
Number of Bolts
3
Outlet Connection
No
Standards
ASTM A242, ASTM A563, AWWA C111
Temp. Range
-20F to 180F
Max. Pressure (PSI)
350
Bolt Material
Steel
Lug Material
Iron
Clamp Material Grade
304
Maximum Vacuum Pressure
10 psi
Outlet Connection Type
Not Applicable
Clamp Material
304 Stainless Steel
Minimum Operating Temperature
-20 Degrees F
Maximum Operating Pressure
300 psI
Features
360 Degrees Gasket Seal, Drop-In Bolts for Installation, Flexi-Coat Epoxy Finish for Corrosion Resistance, May be used to Join Plain End Pipe of the Same Diameter, Range up to 0.40 in Single Band, Removable Lugs Allow Installation in Tight Spaces, Standard Widths Through 30 in
Gasket Coverage
Full Coverage
Maximum Operating Temperature
180 Degrees F
