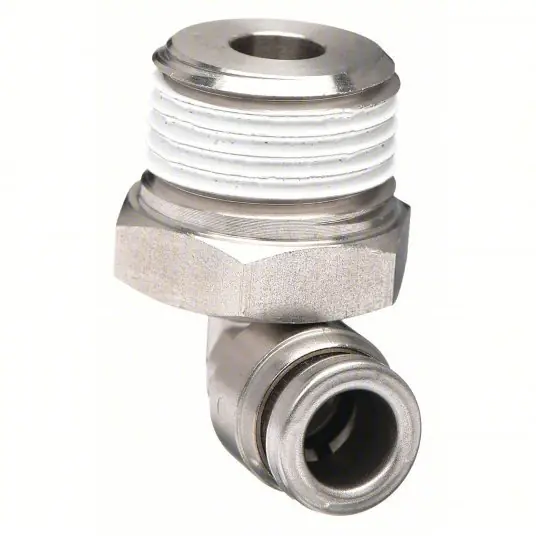

SMC KQG2L03-N02S Male Elbow 316 Stainless Steel, Push-to-Connect x MNPT, For 5/32 in Tube OD, 1/4 in Pipe Size

Male Elbow, Application Air, Non-Potable Water, Steam, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type MNPT, Fitting Side B Pipe Size 1/4 in, Fitting Side A Tube Outer Diameter 5/32 in, Fitting Material Stainless Steel, Material Grade 316, Color Silver, Includes Pre-Applied Thread Sealant Yes, Maximum Operating Pressure 145 psi, Maximum Operating Temperature 302 Degrees F, Overall Length 19 3/32 mm, Specific Fitting Shape 90 Degrees Elbow Adapter

Max. Pressure	435 psi
Fitting Connection Type	Tube x MNPT
Standards	Current Food Sanitation Law Standards, RoHS
Application	Air, Non-Potable Water, Steam
Temp. Range	23 Degrees to 302 Degrees F
Specific Pipe Fitting Shape	90 Degrees Elbow
Fitting Shape	90 Degrees Elbow Adapter
Basic Pipe Fitting Material	Metal
Tube Fitting Material	316 Stainless Steel
Basic Pipe Fitting Shape	Elbow
Pipe Fitting Connection Type	Tube x MNPT
Color	Silver
Fitting Side B Connection Type	MNPT
Material Grade	316
Maximum Operating Temperature	302 Degrees F
Minimum Operating Temperature	41 Degrees F
Maximum Operating Pressure	145 psi
Includes Pre-Applied Thread Sealant	Yes
Compatible Tube Material	FEP, Nylon, PFA, Polyolefin, Polyurethane, Soft Nylon
System of Measurement	Imperial
Resistance Properties	Corrosion-Resistant
Release Type	Button
Fitting Side A Connection Type	Push-to-Connect
Fitting Material	Stainless Steel
