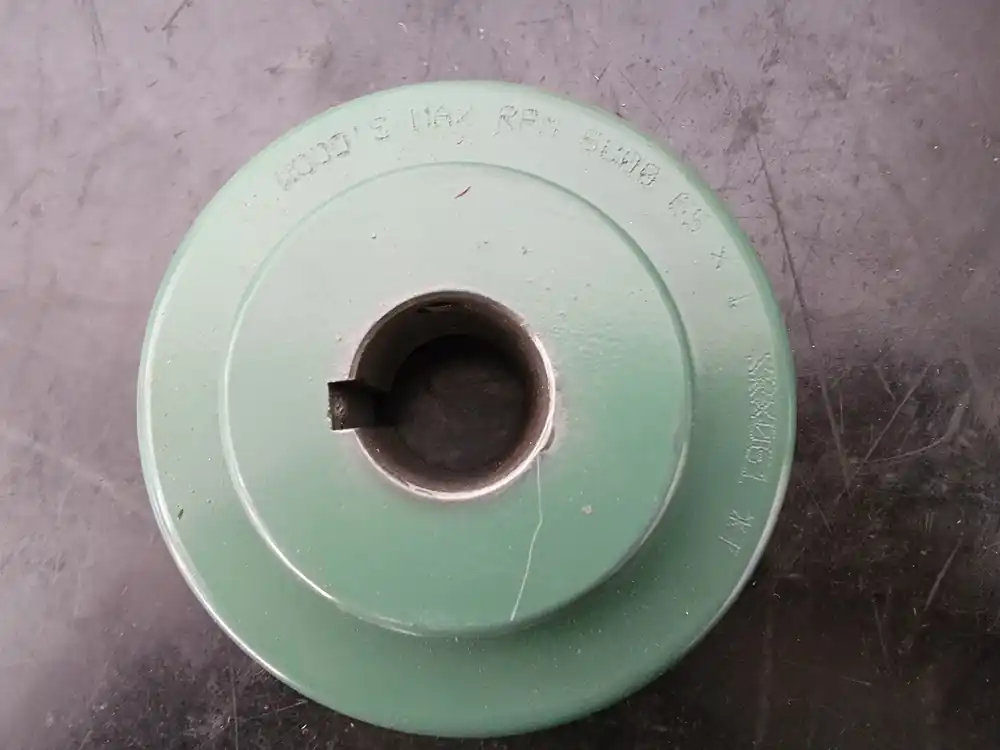

Sleeve Coupling Flange 6SX1 6S1
Original price was: $40.00.$12.00Current price is: $12.00.
| Specifications | |
|---|---|
| Model | 6S1 |
| Made In | MEXICO |
| Condition | Surplus New |
| Other Specifications |
|---|
|
Size – Sleeve Couplings: 6
Flange Type – Sleeve Couplings: S
Bore Type – Couplings: Fixed Bore
Bore Diameter: 1 in
Outside Diameter: 4 in
Keyway Size Type: 1/4 in x 1/8 in
Length through Bore (In.): 1.63 in
Rated Torque (In.-Lb.): 1,800
Maximum RPM: 6,000 RPM
Width (In.): 1.625 in
Height (In.): 1.625 in
Hub Dia. (In.): 4.0 in
Material of Construction: Cast Iron
Setscrew Location: One Over the Key and One at 90 Degrees
Maximum Angular Misalignment: 0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Ideal For: Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Bushing Required: None
|
Be the first to review “Sleeve Coupling Flange 6SX1 6S1”
Related products
-
SALE
Flange Coupling 8SX1-3/8
Original price was: $7.00.$2.10Current price is: $2.10. -
SALE
2 Groove Sheave 2BK55, 5.25″
Original price was: $87.00.$26.10Current price is: $26.10. -
SALE
Quick Disconnect Bushing JX3-3/4, J334
Original price was: $80.00.$24.00Current price is: $24.00. -
SALE

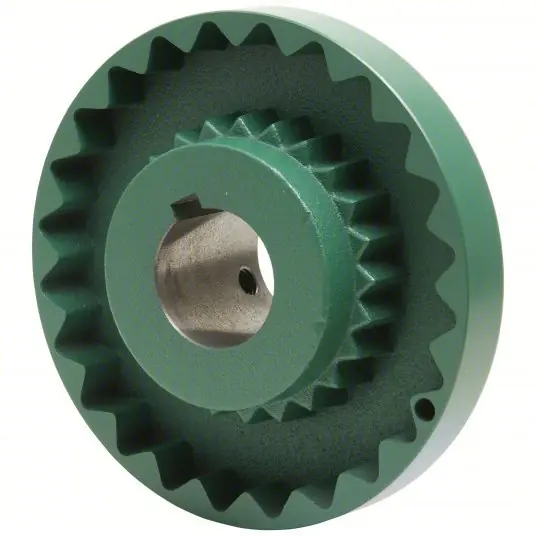

TB Wood‘s 9S218 Sleeve Coupling Flange 9 Coupling Size, 3,750 RPM Max Speed, 6 11/32 in Outside Dia, Inch
