These radial ball bearings are intended for general purpose applications that operate at high speeds with low loads. They have a single row of ball rollers for radial loads, but can support some axial movement.
Double Shielded closures have a shield on both sides to protect the rolling elements from dust and debris, but allow lubricants to get in. Shields are made of metal and are not limited by speed or high temperature conditions.
Bearing Industry Number
6205
Closure & Seal Type
Double Shielded
Bore Diameter
25 mm
Bore Diameter Tolerance
+0/-0.008 mm
Outside Diameter
52 mm
Outside Diameter Tolerance
+0/-11 micron
Outer Ring Width
15 mm
Fillet Radius
1 mm
Ring Material
Alloy Steel
Ring Material Grade
100Cr6
Ball Material
Alloy Steel
Cage Material
Steel
Shield Material
Steel
Seal Material
Iron
Includes Retaining Ring
No
Number of Rows
One
ABEC Rating
1
Dynamic Radial Load Capacity
14.8 kN
Static Radial Load Capacity
7.8 kN
Maximum Axial Load
3,300 lbf
Maximum Speed
14,000 RPM
Temperature Range
-40 °F to 212 °F
Lubricant Material
MT47 Grease
Reviews
There are no reviews yet.

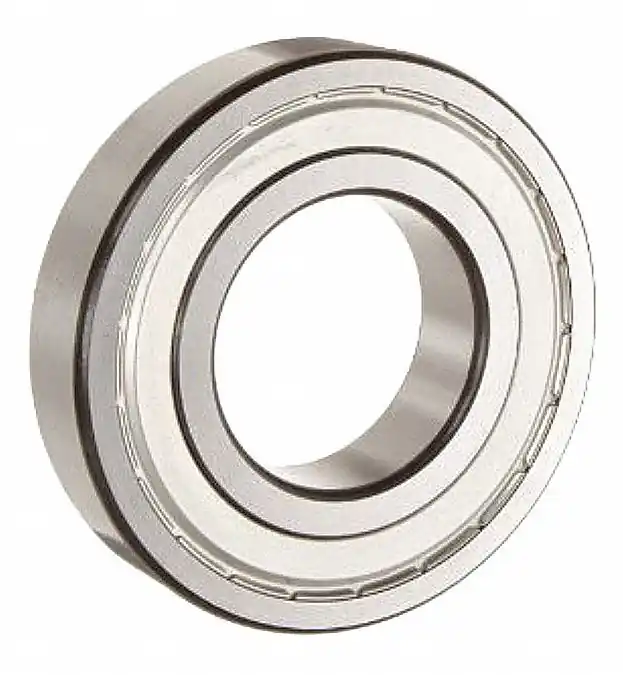

Be the first to review “SKF 6205 2Z JEM Radial Ball Bearing, 6205, Dbl Shield, 25 mm Bore, 52 mm OD, 15 mm Wd, Alloy Steel Ring”Cancel Reply
