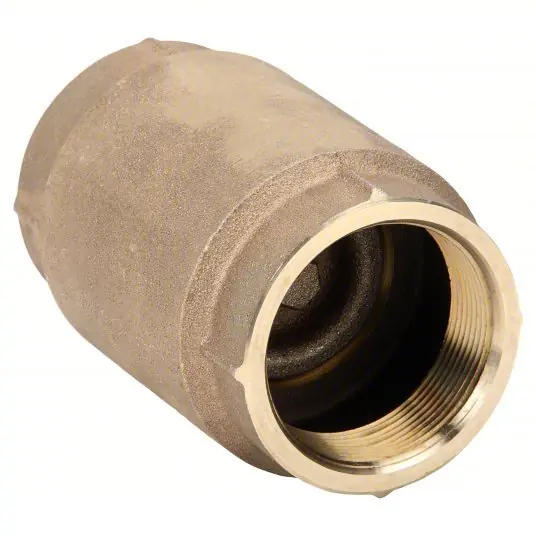

Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female

Simmons 506SB Check Valve Poppet, Inline Valve Body, 2 in Pipe Size, FNPT x FNPT, Silicon Bronze, Female

Original price was: $210.25.Current price is: $52.56.

SKU: SK0026288-US20260630-101428 Category: Tag:

Check Valve, Flow Design Single, Mechanism and Body Design Inline Spring, Body Material – Valves Bronze, Pipe or Tube Size 2 in, Connection Type FNPT x FNPT, Cracking Pressure 2 psi, Mounting Orientation Horizontal, Vertical, Seal Material Buna-N, Max. Temp. – Valves 190 Degrees F, Max. Water Pressure – Valves 400 psi, Max. Seat Material Bronze, Spring Material Stainless Steel, Application – Valves General Purpose, Length 3 1/4 in

Connection Type FNPT x FNPT
Body Material Silicon Bronze
UPC 008391019472
Max. Temp. – Valves 190 Degrees F
Application – Valves General Purpose
Seat Material Bronze
Cracking Pressure 2 psi
Max. Pressure 600 psi
Cracking Pressure – Check Valves 2.000 psi
Standards NSF/ANSI 372, NSF 61, Certified Lead Free
Seal Material – Check Valves Buna-N
Max. Steam Pressure 400 psi
Material of Construction Bronze
Item Spring Check Valve
Max. Temp. 190 Degrees F
Max. Steam Pressure – Valves Not Rated
Spring Material Stainless Steel
Seal Material Buna N
Mechanism and Body Design Inline Spring
Max. Water Pressure 400 psi
Mounting Position Any
Max. Water Pressure – Valves 400 psi
Cap to Inlet Center 1-1/2″
Mounting Orientation – Check Valves Horizontal, Vertical
Flow Design Single
Spring Material – Check Valves Stainless Steel
Seat Material – Check Valves Bronze
Connection Type – Check Valves FNPT x FNPT
Body Material – Valves Bronze
Compliance NSF 372, NSF 61 Certified, California Prop 68
Mounting Orientation Horizontal, Vertical
For Media Water
Maximum Pressure – Steam Not Rated
Check Mechanism Poppet
Check Mechanism Material 304 Stainless Steel
Valve Body Style Inline
3-A Standard Compliance Not Rated
Operating Temperature – Maximum 190 Degrees F
NSF Certifications for Food and Drinking Water NSF 61
Connection Gender – Side 2 Female
Maximum Pressure – Operating 600 psi
Vacuum Service Rating Not Rated
Connection Gender – Side 1 Female
Manufacturer Warranty 1 yr
Connection Type – Side 1 NPT
Silent Check Standard
Connection Type – Side 2 NPT
Valve Series 500 SB
