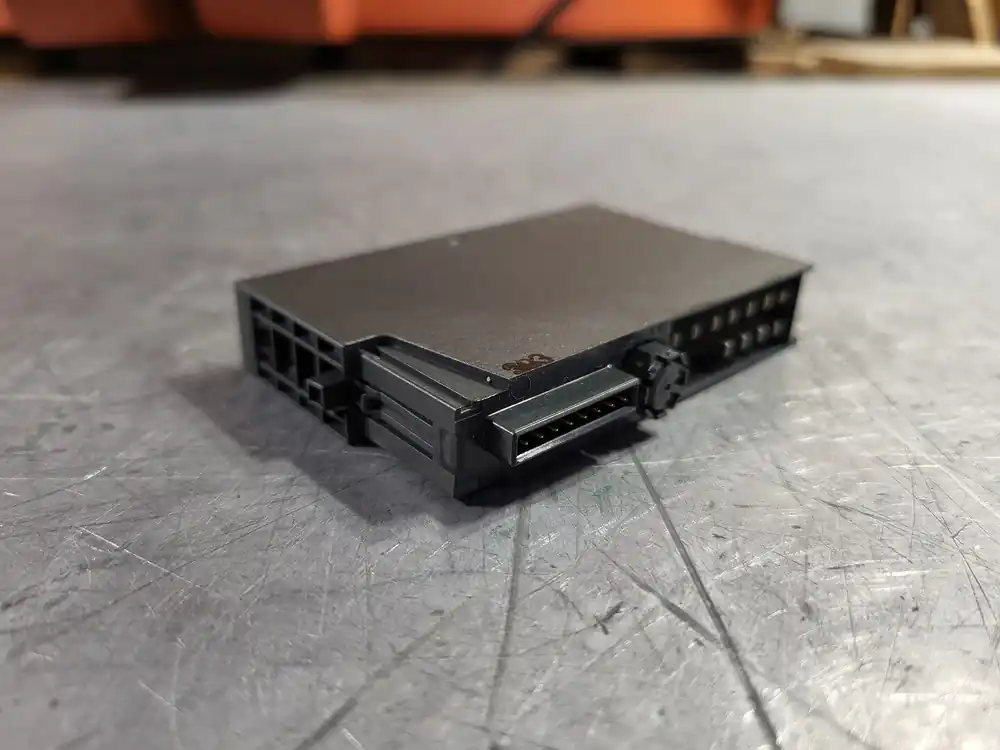

SIMATIC PLC I/O Module Analogue 24 V Analog Input 6ES7134-4MB02-0AB0

Supply voltage

Load voltage L+

Rated value (DC): 24 V

Reverse polarity protection: Yes

Input current

from load voltage L+ (without load), max.: 48 mA

from backplane bus 3.3 V DC, max.: 10 mA

Output voltage

Power supply to the transmitters

present: Yes

Power loss

Power loss, typ.: 1.2 W

Address area

Address space per module

Address space per module, max.: 4 byte

Analog inputs

Number of analog inputs: 2

permissible input current for current input (destruction limit), max.: 50 mA

Cycle time (all channels) max.: 0.5 ms; 0.5 ms for 2 channels without noise suppression, 18 / 21, ms per channel with noise suppression

Input ranges (rated values), currents

-20 mA to +20 mA Yes

4 mA to 20 mA Yes
