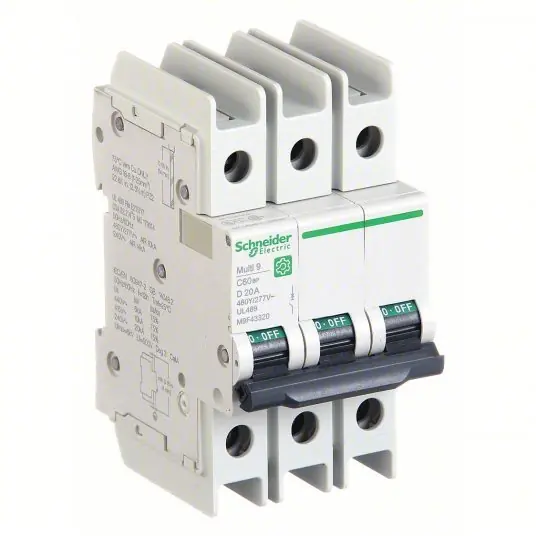

Schneider M9F43320 IEC Miniature Circuit Breaker 20 A Amps, 14kA at 120/240V AC, Screw Clamp, D

IEC Miniature Circuit Breaker, Amps 20 A, Number of Poles 3, Curve Type D, AC Voltage Rating 240/277/480V AC, DC Voltage Rating Not Rated, Max. AIR Rating 14kA at 120/240V AC, Phase 3, Meets UL Type UL 489, Terminal Connection Screw Clamp, Series C60BP, Trip Type Thermal Magnetic, Circuit Breaker Mounting Style DIN Rail, Application Branch Circuit Protection, Min. Wire Size 18 AWG, Max. Wire Size 8 AWG, Length 4.06 in, Width 2.13 in, Depth 2.83 in, Frame Size 63A/C60BP

Series	C60BP
Amps	20 A
Number of Poles	3
AC Voltage Rating	240/277/480V AC
Phase	3
Circuit Breaker Actuator	Toggle
Circuit Breaker Mounting Style	DIN Rail
Max. AIR Rating	14kA at 120/240V AC
Trip Type	Thermal Magnetic
Terminal Connection	Screw Clamp
DC Voltage Rating	Not Rated
Curve Type	D
Mounting	Din Rail
Application	Branch Circuit Protection
Standards	CCC, CSA C22.2 No 5, EN/IEC 60947-2, GB 14048.2, UL 489
Interrupt Rating	4.5 kA at 440V AC, 7.5 kA at 415V AC, 15 kA at 240V AC, 10 kA at 240/415/480Y/277V AC, 6 kA at 440V AC, 20 kA at 240V AC, 14 kA at 240V AC
Color	Gray
Features	Mercury Free; Padlockable
Max. Operating Temp.	158 Degrees F
Meets UL Type	UL 489
Min. Operating Temp.	-22 Degrees F
