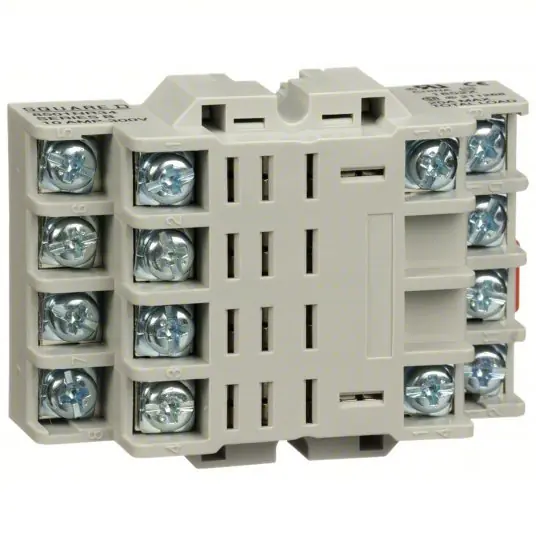

Relay Socket, Base Style Square, Contact Form 4PDT, Current Rating 10 A, Electrical Connection Screw Clamp, Flat Pin Width 0.18 in, Number of Pins 14, Number of Terminals 14, Pin Shape Flat, Socket Type Elevator, Mounting Style DIN Rail & Surface, Color White, Compatible Relays Square D 8501R Miniature Series, Contact Rating (AC) 10 A @ 300V, Depth 1.09 in, Height 2.74 in, Standards CE Certified, CSA Certified, UL Recognized, Status Indicator None, Width 1.98 in
Item – Relay
Relay Socket
Socket Type – Relay
Elevator
Base Style – Relay Socket
Square
Contact Form – Relay Socket
4PDT
Mounting – Relay
DIN Rail, Surface
Electrical Connection – Relay Socket
Screw Clamp
Number of Pins – Relay
14
Contact Rating – Relay Socket
10A @ 300V AC
Color
White
Standards
CE Certified, CSA Certified, UL Recognized
Mounting
DIN Rail/Surface
Voltage
250VAC
Number of Pins
14
Socket Style
Square
Contact Rating
10A @ 300VAC
Status Indicator
None
Item
Relay Socket
Socket Code
F
Socket Type
Elevator
Terminals
Screw Clamp
Contact Form
4PDT
Number of Terminals
14
Finger Safe
No
Mounting Style
DIN Rail & Surface
Contact Rating (AC)
10 A @ 300V
Socket Mounting Style
DIN-Rail & Surface
Socket Design
Elevator
Current Rating
10 A
Pin Shape
Flat
Socket Code Configurator
Square / 14 / 0.18 in
Electrical Connection
Screw Clamp
Electrical Connection Type
Screw
Base Style
Square
Compatible Relays
Square D 8501R Miniature Series
Mounting Support
panel || DIN rail
Shape Of Pin
spade
Product Or Component Type
Relay Socket
Product Certifications
UL Recognized || CSA || CE
Pin Number
14
Line Rated Current
10 A 300 V AC
Mounting Type
Panel; DIN rail
Certifications
UL Recognized; CSA; CE
