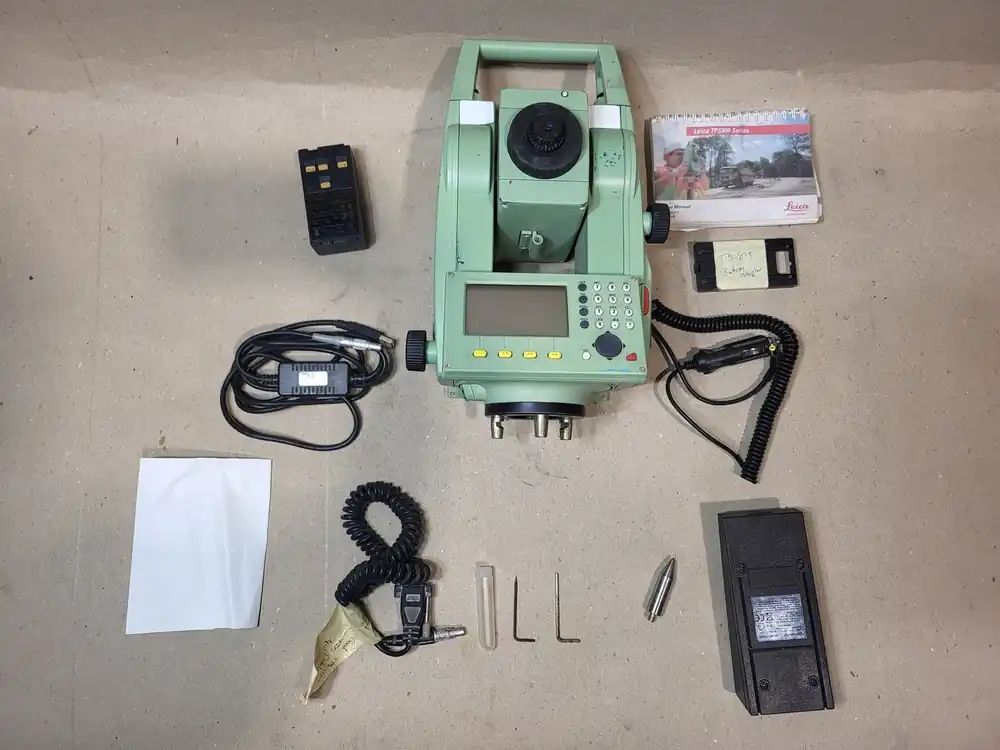

Robotic Total Station TCR803

Overview:

Angular Measurement

• Angular Accuracy: 3 arc-seconds

• Angle Reading Resolution: 1″ / 5″ / 10″ (configuration dependent)

  Distance Measurement (EDM)

• With Prism: Up to approx. 5,000 m (depending on prism and conditions)

• Reflector less Mode: Up to approx. 800 -1,000 m (surface and conditions dependent)

• Distance Accuracy: (2 mm + 2 ppm) typical

  Compensation

• Compensator Type: Dual-axis compensator

• Function: Automatic correction of horizontal and vertical axis misalignment

  Robotic Functionality

• Robotic Operation: Motorized target tracking

• Remote Control Capability: Yes (with compatible Leica controller)

• Software Compatibility: Leica survey software platforms (model and version dependent)

  Data & Connectivity

• Communication Interface: RS-232

• Internal Memory: Integrated data storage for field measurements

• Data Export Formats: TXT, CSV, DXF (software dependent)

  Environmental Specifications

• Operating Temperature: -20°C to +50°C

• Ingress Protection: Approx. IP55 (dust and splash resistant)

• Field Use: Designed for harsh outdoor and construction environments

  Power Supply

• Power Source: Rechargeable Leica battery (GEB series)

• Battery Voltage: Approx. 7.2 – 7.4 V DC

• Typical Operating Time: 8 – 10 hours (usage dependent)
