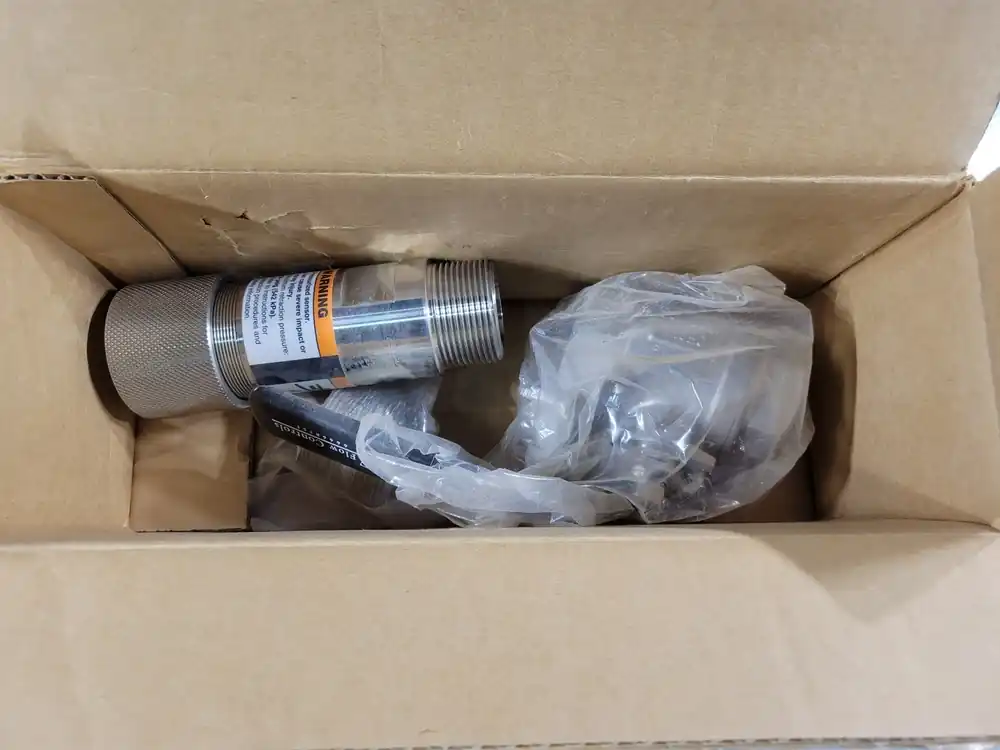

Retraction Assembly Kit 23765-00 w/ 1-1/4″ Ball Valve

Process Connection: 1-1/4″ NPT (MNPT)

Sensor Connection: Connects to 1-inch diameter tube on retractable style sensor

Wetted Materials: 316 stainless steel (SST), PTFE

Maximum Temperature: +32 to +212 deg. F (0 to 100 deg. C)

Maximum Pressure: 200 psig (13.8 barg)

Maximum Retraction Pressure:

fir 21-inch or shorter sensors: 64 psig (4.4 barg)

for 21 to 36-inch long sensors : 35 psig (2.4barg)

Sensor Type: Rosemount 396R, 398R, 3400HT, and RBI-547

Conductivity: Rosemount 402
