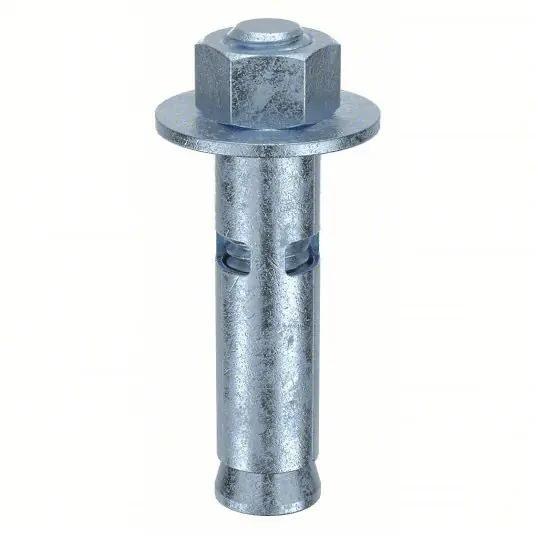

Red Head HN-1222 Sleeve Anchor 2 1/4 in Overall Lg, 1/2 in Dia, 3/8″-16 Thread Size, Steel, Hex, 25 PK

Sleeve Anchor, System of Measurement Inch, Anchor Diameter 1/2 in, Overall Length 2 1/4 in, Thread Size 3/8 In.-16, Drive Type External Hex, Head Type Hex, Material Steel, Finish Zinc Plated, Drill Bit Size 1/2 in, Compatible Material Block, Brick, Concrete, Minimum Installation Torque 20 ft-lb, Maximum Installation Torque 20 ft-lb, Minimum Installation Depth 1 7/8 in, Maximum Material Thickness 3/8 in, Maximum Ultimate Shear Strength 5,000 lb, Maximum Ultimate Tension Strength 4,400 lb

Compatible Material	Concrete; Hollow Block; Brick
Sub-Brand	Dynabolt
Material Type	Carbon Steel
Finish	Zinc Plated
Head Type	Hex Nut
Drive Type	Hex
ICC Approved for Cracked Concrete	No
Maximum Material Thickness	3/8″
Ultimate Shear Strength (4,000 psi Concrete)	4,500 lb
Ultimate Tension Strength (4,000 psi Concrete)	4,400 lb
ICC Approved for Un-Cracked Concrete	Yes
Industry Standards	A-A-1923A
Material	Steel
Max. Work Thickness	3/8 in
Min. Embedment	1 7/8 in
System of Measurement	Inch
Maximum Ultimate Tension Strength	4,400 lb
Material Quality Standards	ASTM E488
Minimum Ultimate Shear Strength	3,250 lb
Manufacturer Location	Globally Sourced
Series	Dynabolt
Maximum Installation Torque	20 ft-lb
Minimum Installation Torque	20 ft-lb
Maximum Ultimate Shear Strength	5,000 lb
Minimum Ultimate Tension Strength	2,220 lb
