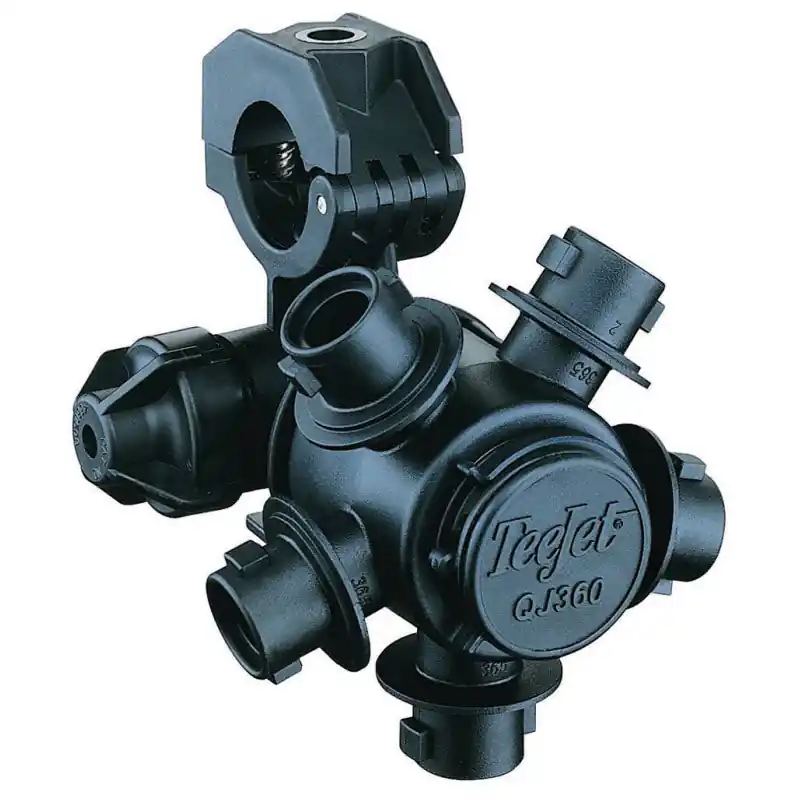

QJ365E-20MM-NYB Quick TeeJet Nozzle Body

QJ365E-20MM-NYB Quick TeeJet Nozzle Body for Wet Booms

To Clamp on 20mm ” Pipe, 5 Spray Outlets

Features:

-Available with either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.

-Postive shutoff between each spray position.

-Automatic spray alignment using flat fan spray tips.

-Maximum operation pressure of 300 psi.

-Available in 20 mm, 25 mm, 1/2″, 3/4″ or 1″ pipe connections.

-Includes ChemSaver diaphragm check valve for drip free shutoff. Standard diaphragm opens at 10 psi.

-Standard EPDM diaphragm with Viton available as an option.

-Flow Rate: 2.25 GPM (8.5 l/min) at 5 PSI (0.34 bar) pressure drop, 3.18 GPM (12.0 l/min) with 10 PSI (0.69 bar) pressure drop.

-Mounts to a 3/8″ (9.5 mm) hole drilled in pipe or tubing.

-Molded hex socket in upper clamp for attaching to flat surfaces. Accepts 5/16″ or M8 bolt.
