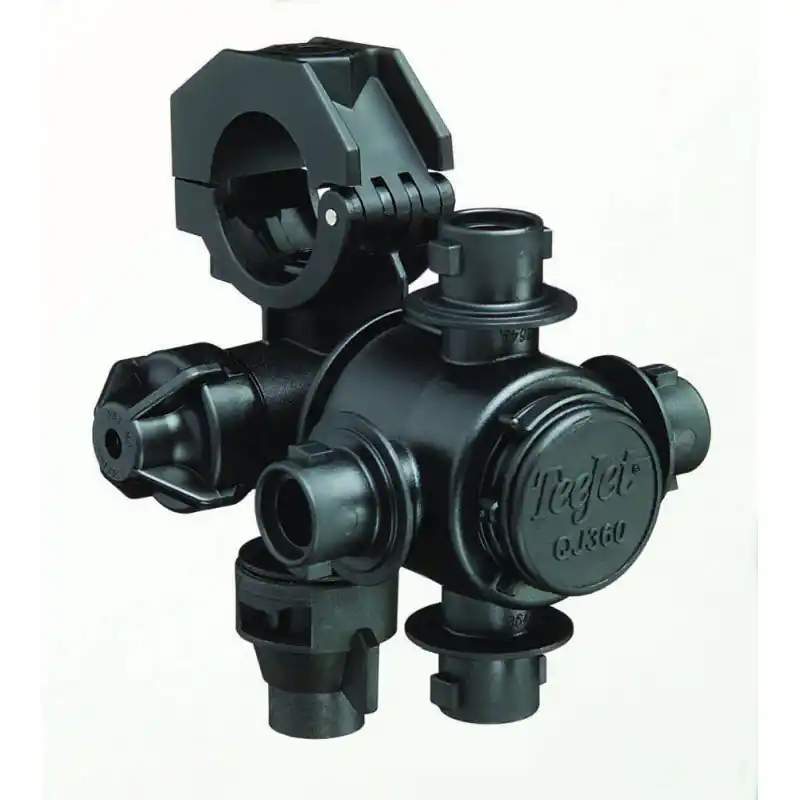

QJ364F-1-NYB Quick TeeJet Nozzle Body w/ Fertilizer Outlet

QJ364F-1-NYB Quick TeeJet Nozzle Body with Fertilizer Outlet for Wet Booms

To Clamp on 1″ Pipe, 4 Spray Outlets

Features:

-Single fertilizer nozzle outlet with shutoff cap and either 3, 4 or 5 spray positions for easy change of spray tips or quick boom flushing.

-Positive shutoff between each position.

-Automatic self-alignment with flat fan spray patterns.

-Flow rate: 2.25 GPM (8.5 l/min) with 5 PSI (0.34 bar) pressure drop through turret and 3.4 GPM (12.9 l/min) through fertilizer outlet

-Maximum pressure of 300 PSI (20 bar).

-Available in 1″ pipe connections and mounts with a 3/8″ (9.5 mm) hole drilled in pipe or tubing.

-Includes ChemSaver diaphragm check valve for drip-free shutoff. Standard diaphragm opens at 10 PSI (0.7 bar).

-Standard O-rings and diaphragm made of EPDM and Buna with Viton optional.

-Molded hex socket in the upper clamp for attaching to flat surfaces. Accepts 5/16″ or M8 bolt.
