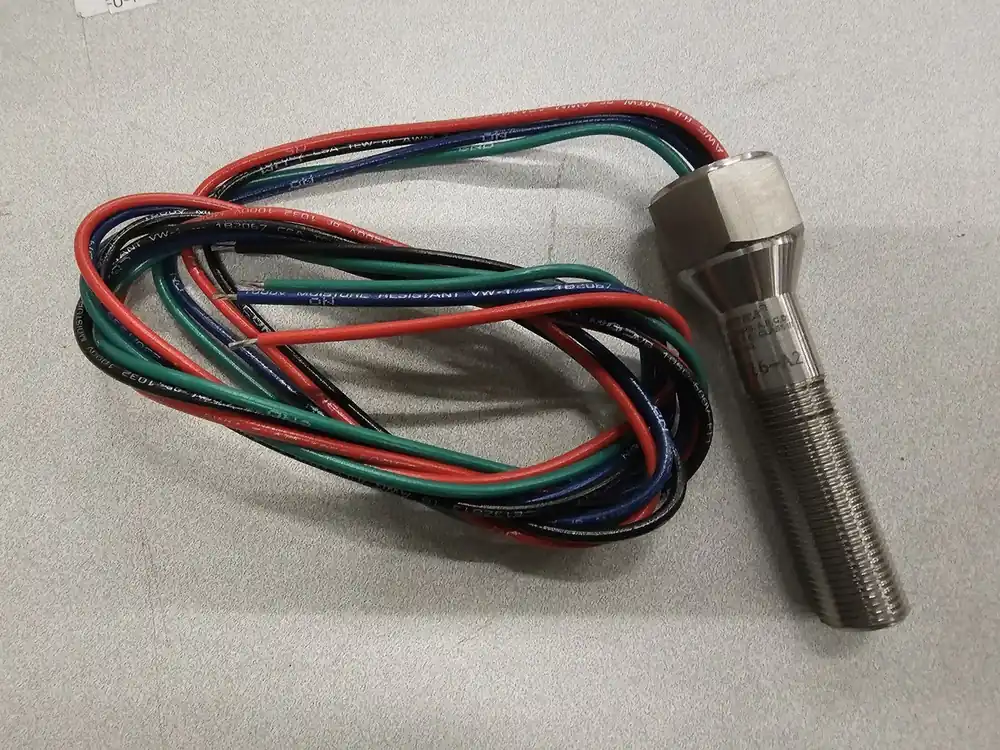

Proximity Switch 73-13526-A2

Body Shape: Cylindrical

Body Material: 316L Stainless Steel

Contact Arrangement: SPCO / SPDT (Form C)

Contact Material: Palladium-Silver

Mounting Thread: 5/8″-18 UNF (47.75mm / 1.88″ long) c/w 2 x locknuts

Max Current: A

Connection: PVC Leads

Conduit Entry: 1/2″ NPT

Operating Temperature: -40°C to +100°C / -40°F to +212°F

Sensing Range with Magnet: <12mm (0.47″)

Sensing Face Pressure Rating: 2000psi / 138 bar

Range (ferrous target): 2.5mm|0.10″

Repeatability: Approx. 0.05mm (0.002″)

Response Time: 8 ms

Differential / Hysteresis: < 0.51mm (0.020″)
