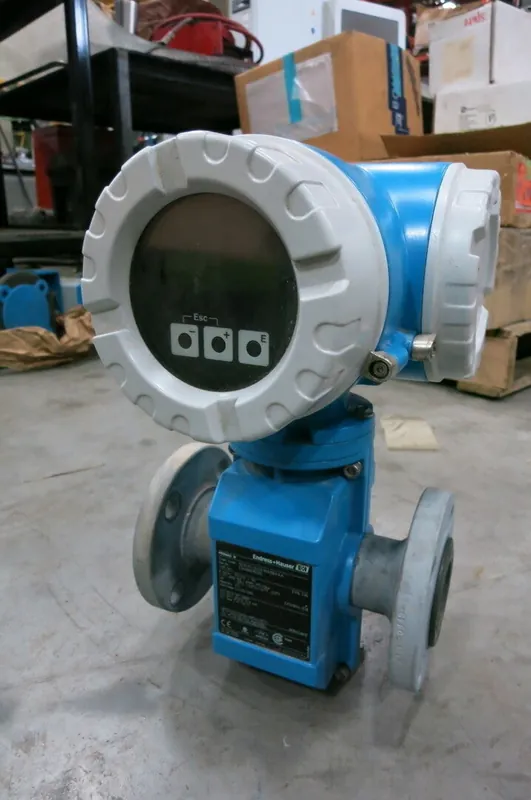

PROMAG 50 Electromagnetic Flow Measuring System

Maximum Measurement Error: +/- 0.5% +/-0.2% (optional)

Measuring Range: 0…110’000 m3/h

Medium Temperature Range: -20 deg. C – 80 deg. C

Maximum Process Pressure: PN6…40 CI 150…300 JIS 10…20K AWWA Class D AS 2129 Table E AS 4087 PN16

Measuring Principle: Electromagnetic

Nominal Diameter Range: DN 25…2000, 1…78″

Degree of Protection: IP 67 (NEMA 4X), IP 68 (NEMA 6P)

Display/Operation: Two line display with backlit, Push Button

Outputs: 4…20 mA, Pulse/Frequency, Status

Inputs: Status

Digital Communication: HART PROFIBUS PA/DP
