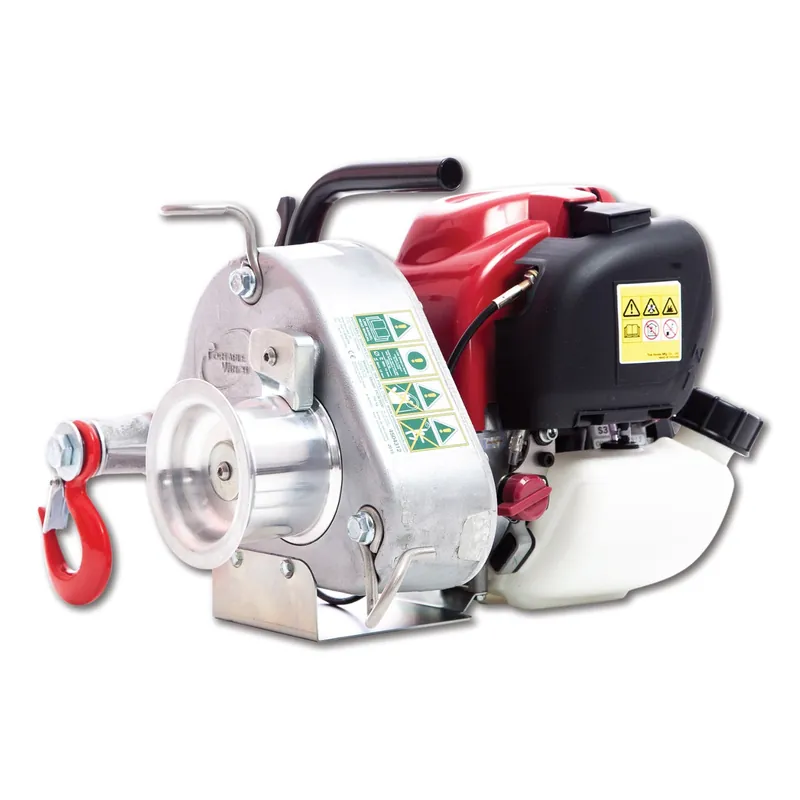

Portable Winch – PCW3000 – Winch Gas Pulling 35CC

Portable Winch – PCW3000 – Winch Gas Pulling 35CC

DESCRIPTION

Compact Power
The PCW3000 capstan winch is nothing short of a tour de force to deliver incredible pulling power, in the smallest format designed by Portable Winch Co. Coupled with the 360° inclinable GX35 Honda engine, it will be your best companion no matter where your next mission is.

Design
The PCW3000 was designed to meet the demand for an even more portable model than the original winch PCW5000. Its capstan drum concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective, and safe way. In addition, a wide range of accessories has been designed specifically to carry it over long distances such as the and !

Performance
The proven reliability of Honda engines, combined with Portable Winch ingenuity, makes the PCW3000 a formidable competitor on the market. The winch can pull up to 700 kg without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could move up to 3,500 kg!

SPECIFICATIONS

Series: Pro

Designed in 2012

Motor/Engine: Honda GX35 4-stroke – 360° inclinable, Air-cooled , 1.0 kW – 1.3 HP @ 7000 tr/min

Powered by unleaded gasoline, 86 octane or higher

Drive/Clutch: Direct drive ( no clutch)

Rope Retention System: No

Drum turns when motor/engine is idling: Yes

Pulling Capacity – Standard drum (single line / double line): Ø 3” (76 mm): 1,600 lb / 3,200 lb

Pulling Capacity – Optional drum (single line / double line): No optional drum

Lifting Capacity – Standard drum (single line / double line): Not designed for lifting – See winches

Speed – Standard drum: Ø 3” (76 mm):33’/min

Weight: 20 lb

Dimensions (overall): 11-3/8” x 11-3/4” x 10-1/4”

Gearbox – Gear ratio: 2001:1

Break: Anti-reversing roller clutch bearing

Rope ( not included): Low stretch double braided polyester

Length: Unlimited

Minimum Breaking Strength (MBS): 3,395 lb

Minimum diameter: Ø 3/8” (10 mm)

Maximum diameter: Ø 1/2” (13 mm)

Recommended diameter: Ø 3/8” (10 mm)

Included: Polyester sling – 2-1/2” x 6-1/2”

Warranty: Once purchased, and get 1 additional year of warranty for FREE!

Private use warranty: 5 years

Commercial use warranty: 1 year

Motor/Engine warranty: Honda International Warranty

Certifications: CE

User Guide: Download
