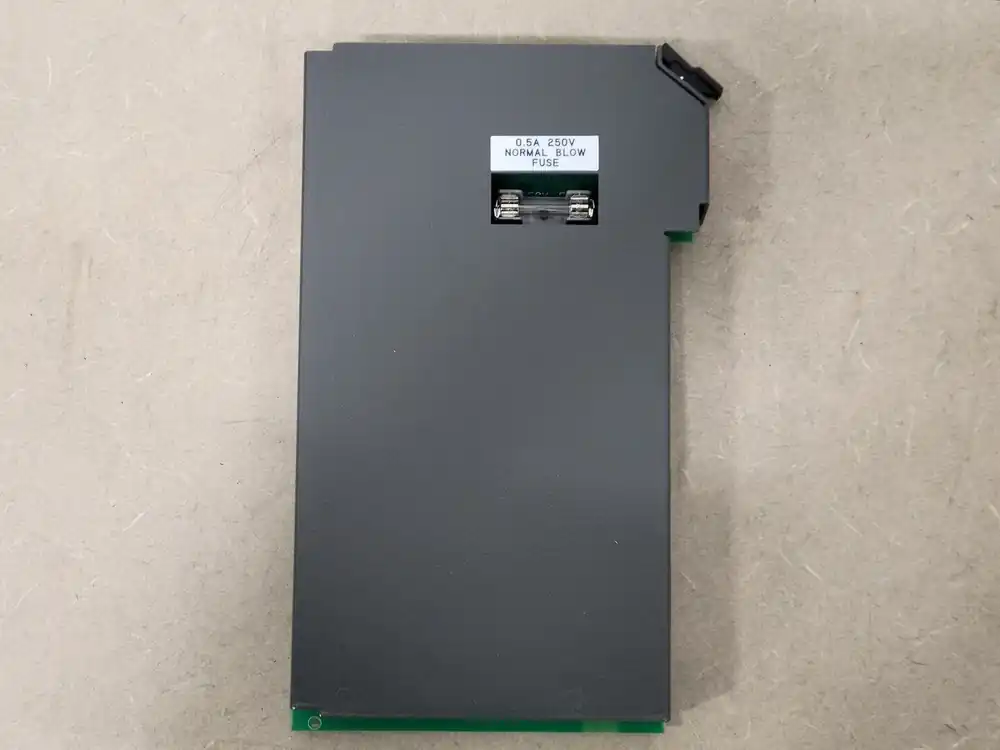

PLC Input Module 1771-IGD/A

Series: A

Part Number: 96042278 A01

Operating Temperature: 32 to 131 degrees fahrenheit

Power Dissipation: 2.7 Watts (max.); 0.4 Watts (min.)

Signal Delay: Less than 1ms

Compatible I/O Chassis: 1771-AM1 / 1771-AM2 Chassis

Compatible 1771 Chassis: Series A or B 1771-A1B, 1771-A2B, 1771-A3B, 1771-A3B1, 1771-A4B

Signal Voltage Rating: Positive Logic: On = 2.0 – 5.25 VDC; Off = -0.2 to 0.8 VDC Negative Logic: On = -0.2 to 0.8 VDC; Off = -2.0 – 5.25 VDC

Logic State: Positive and negative Logic ( selectable)

Module Type: TTL Input Module

Mounting: Rack Mounting

Number of Inputs: 16

Backplane Current: 0.50 A @ 5 VDC

Wiring Arm: 1771-WH

Voltage Category: 5 Volts DC, TTL

DC Operating Voltage: 5.0 – 5.3 Volts

Typical DC Signal Delay (On): < 1 ms

Typical DC Signal Delay (Off): < 1 ms

Typical AC Signal Delay (Off): 24 (+/-10) ms

Typical DC Signal Delay (Off): 20 (+/-9) ms
