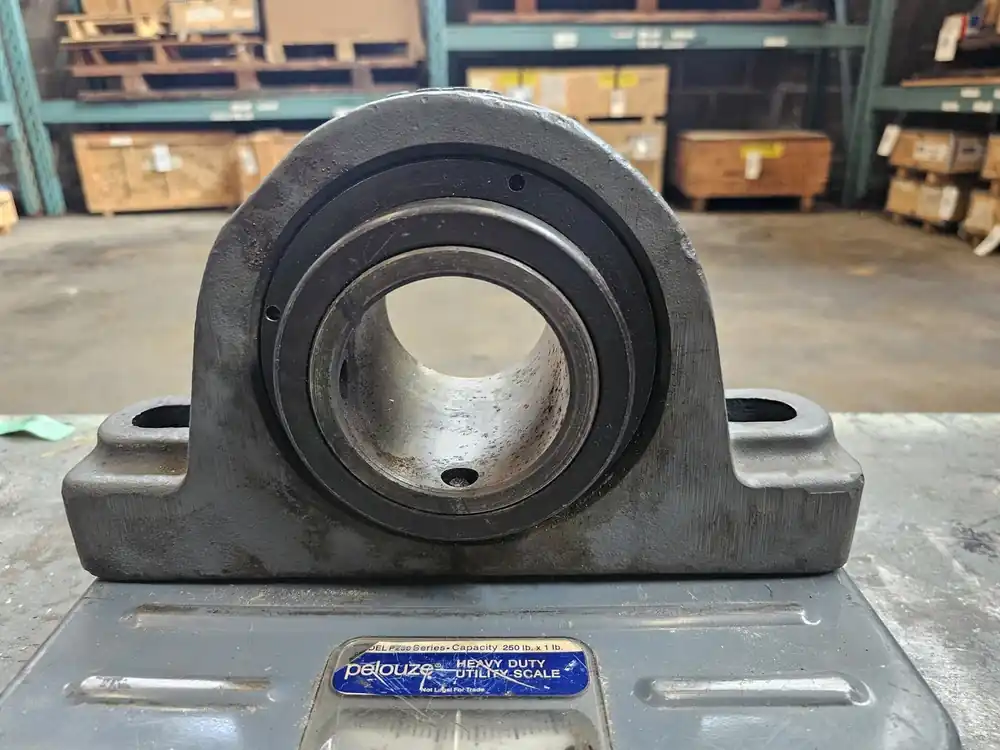

Pillow Block Bearing (RRX), 3-3/16″ Bore, PB22451H

Overview:

Bore Diameter: 3-3/16 in

Bolt Center To Center Length: 10.0000 in

Bore Type: Round

Base To Bore Centerline: 3.7500 in

Overall Length: 13.0000 in

Locking Device: Concentric Collar

Housing Material: Cast Iron

Housing Construction: Solid

Type Of Bearing: Spherical Roller

Overall Height: 7.5000 in

Duty Type: Standard Duty

Base Width: 3-7/16 in

Expansion Type: Non-Expansion Bearing (Fixed)

Finish Coating: Powder Coated

Overall Width: 4.3750 in

Seal Type: Labyrinth

Radial Dynamic Load Capacity: 51000 lbf

Radial Static Load Capacity: 90700 lbf

Lubrication Type: Lubrication Fitting

Series: 400

Standards Met: ANSI/ABMA STD 11-1990

Max Rpm: 1650 rpm

UPC_NO: 662327110376

Locking Type: Concentric Collar

Number Of Mounting Holes: 2

Mounting Type: 2-Bolt Base
