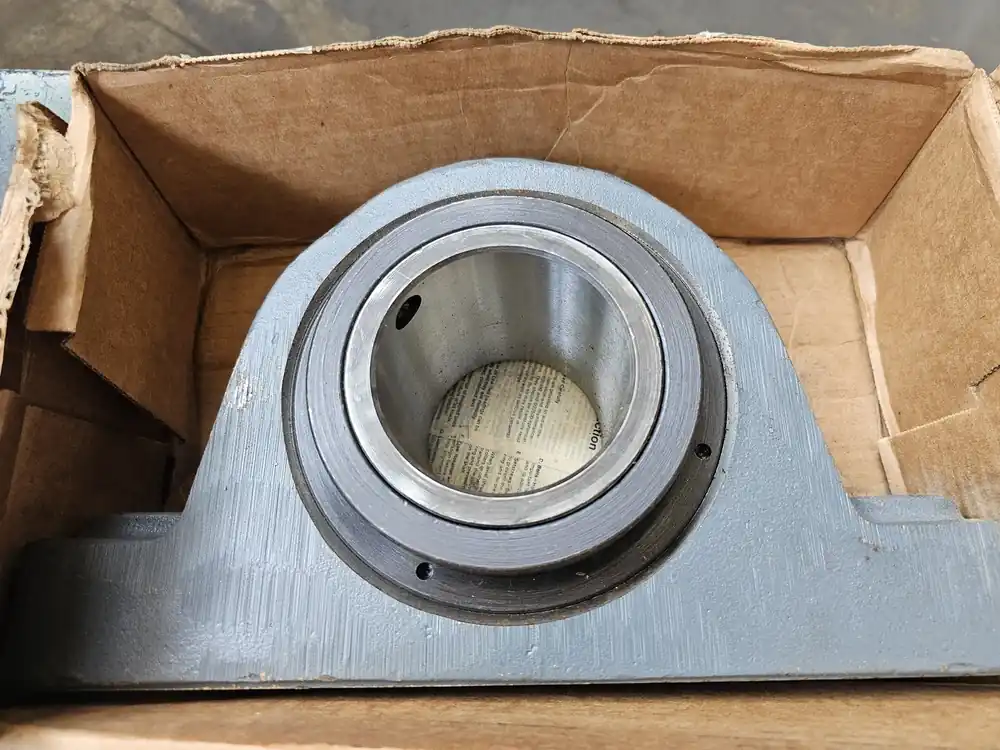

Pillow Block Bearing Link-Belt, 3-3/16″ Bore, PB22451H
Original price was: $1,994.00.$298.98Current price is: $298.98.
Pillow Block Roller Bearing – 3-3/16 in Bore Dia., Cast Iron Material, Standard Duty, Non-Expansion Bearing (Fixed)
| Specifications | |
|---|---|
| Model | PB22451H |
| Made In | UNITED STATES |
| Condition | Surplus New | General |
| Type | Pillow Block |
| Height | 7.50″ |
| Outside Length | 13.00 in |
| Base to Bore Centerline | 3.75″ |
| Distance Between Bolts | 10.00″ |
| Other Specifications |
|---|
|
Overview: Bore Diameter: 3-3/16 in Bolt Center To Center Length: 10.0000 in Bore Type: Round Base To Bore Centerline: 3.7500 in Overall Length: 13.0000 in Locking Device: Concentric Collar Housing Material: Cast Iron Housing Construction: Solid Type Of Bearing: Spherical Roller Overall Height: 7.5000 in Duty Type: Standard Duty Base Width: 3-7/16 in Expansion Type: Non-Expansion Bearing (Fixed) Finish Coating: Powder Coated Overall Width: 4.3750 in Seal Type: Labyrinth Radial Dynamic Load Capacity: 51000 lbf Radial Static Load Capacity: 90700 lbf Lubrication Type: Lubrication Fitting Series: 400 Standards Met: ANSI/ABMA STD 11-1990 Max Rpm: 1650 rpm UPC_NO: 662327110376 Locking Type: Concentric Collar Number Of Mounting Holes: 2 Mounting Type: 2-Bolt Base |
