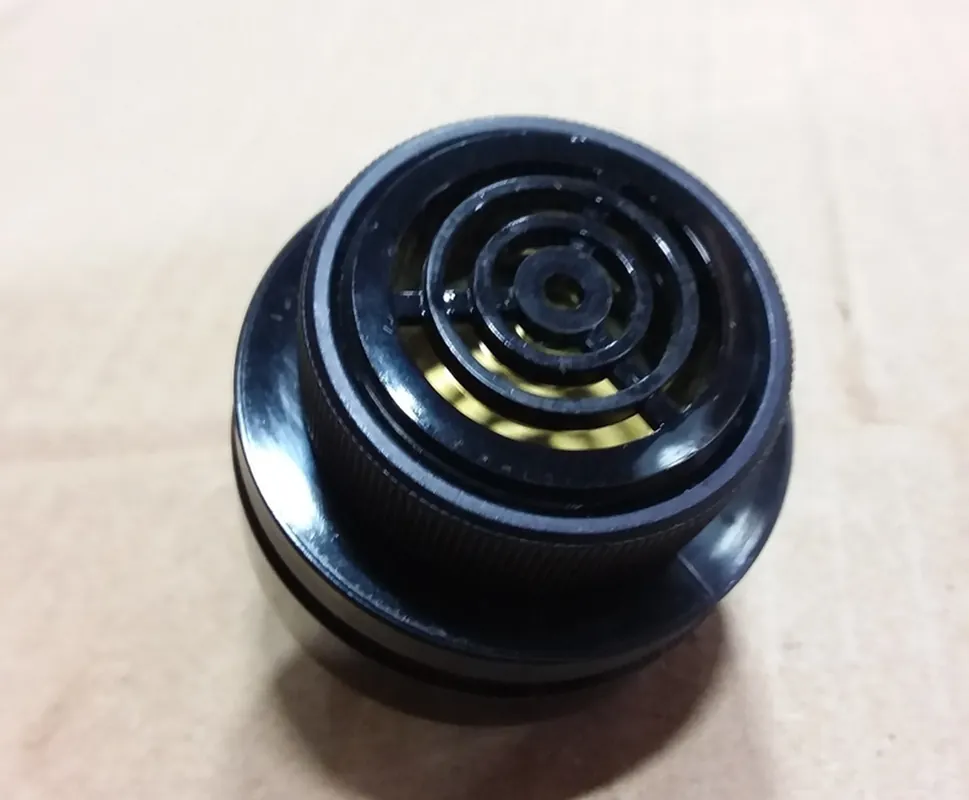

Piezo Driven Alarm Buzzer SC628M

Series: SC

Drive Cicuitry: Indicator, Internally Driven

Input Type: DC

Technology: Piezo

Operating Mode: Single Tone

Sound Pressure Level: 70 dB @ 6V, 61 cm

Port Loaction: Top

Termination: Screw Terminal, Quick Connect Tab -0.250″ (6.35 mm)

Sound Level Category: Medium

Mode of Operation: Continuous

Voltage Rating: 6-28 VDC

Frequency: 2900 +/-500 Hz

Loudness @ 2 ft.: 80 to 91 dB (A) Typ.

Loudness @ min VDC: 70 dB (A) min. @ 2 Feet and 6 VDC

Loudness @ max VDC: 85 dB (A) min. @ 2 Feet and 28 VDC

Current Draw: 4-16 mA

Housing Material: 6/6 Nylon, Color: Black

Storage Temperature: -65 deg. C to +85 deg. C

Operating Temperature: -40 deg. C to +85 deg. C

Panel Mounting: Recommended hole size is 1.25″ (31.75mm). Thread front will fit standard 30 mm (1.81″) hole.

Knurled Nut: Used to attach part to panel. The max recommended torque is 10 in-lbs
